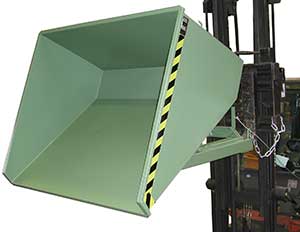

Self dumping hopper - Type EXPO |
Very robust, the self-dumping hoppers EXPO and BB/AK are ideal for collecting, transporting and evacuating all materials, whether solid or liquid, such as waste, wood chips, food and industrial products.
|
- Dump to any heights : cable control from the seat of the forklift truck
- Robust construction 3 mm thick for the construction 3 mm thick for the steel plate walls, 8 to 10 mm for the gauge steel hoppers : these self dumping hoppers are designed to resist to the hardest working conditions.
- Advantageous center of gravity of the load
- Stable base frame with forklift pockets
- Safety chain
- Quick setting up on the forks
- Powder coating finish 5 colors available
Orange RAL2000, Red RAL3000, Blue RAL5012
Green RAL6011, Grey RAL7005
 |

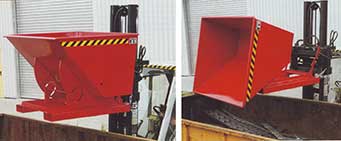

| Self dumping hopper - Type BB/AK |
|
| |
Options :
- Automatic unlock for the model BB/AK
- Polyamide wheels Ø180 mm : 2 fixed wheels, 2 mobile wheels and one with stop
- Leak-proof hoppers oil and water
- Hot dip galvanizing
|
 |
 |
|
Quotation request (Click on the reference below)
|
| Dumping hopper Ref. |
Capacity
(kg) |
Capacity
(m3) |
Length x Width x Height
(mm) |
Forklift pockets LxH (mm) |
Forks spacing
(mm) |
Weight
(kg) |
| EXPO300 |
750 |
0,30 |
1289 x 770 x 835 |
200 x 80 |
300 |
120 |
| EXPO600 |
1000 |
0,60 |
1289 x 1070 x 835 |
200 x 80 |
600 |
140 |
| EXPO900 |
1000 |
0,90 |
1289 x 1570 x 835 |
200 x 80 |
600 |
173 |
| EXPO1200 |
1500 |
1,20 |
1802 x 1070 x 1103 |
200 x 80 |
600 |
205 |
| EXPO1700 |
1500 |
1,70 |
1802 x 1570 x 1103 |
200 x 80 |
600 |
250 |
| EXPO2100 |
1500 |
2,10 |
1802 x 1870 x 1103 |
200 x 80 |
600 |
280 |
| BB/AK 500 |
1000 |
0,50 |
1420 x 1008 x 1070 |
200 x 90 |
600 |
166 |
| BB/AK75 |
1000 |
0,75 |
1420 x 1190 x 1070 |
200 x 90 |
600 |
190 |
| BB/AK1000 |
1000 |
1,00 |
1420 x 1560 x 1070 |
200 x 90 |
600 |
209 |
|
