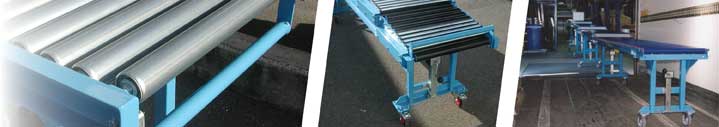

Telescopic roller conveyor

The telescopic conveyor with gravity roller has utility on loading docks,
especially for the handling of small packages.

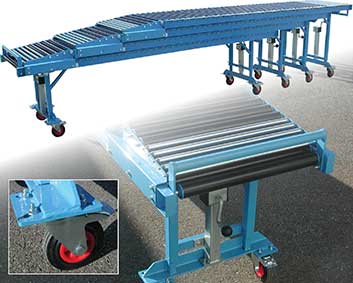

The telescopic roller conveyor TGC-6-12 is composed of several nested rigid elements assembled together
and deployed when needed.
On the loading side, the conveyor is equipped with steel rollers more shock resistant than PVC rollers.

Strong construction of steel profiles and PVC rollers Ø50 mm with spring axis 65 mm spaced
Zinc plated steel rollers Ø20 mm ensuring the transition between each element
Double legs height adjustable with crank. They are equipped with swivel castors Ø125 mm
Conveyor in 4 parts

Quotation request (Click on the reference below)
Conveyor Ref	Capacity (kg/m)	Closed conveyor length (mm)	Deployed conveyor length (mm)	Width (mm)	Level 1 height (mm)	Level 2 height (mm)	Level 3 height (mm)	Level 4 height (mm)
TGC-6-12	50	4500	12000	590	780 / 1050	870 / 1090	955 / 1190	1040 / 1360
