Dock equipment > Forklift truck drum handlers - Drum grabber - Dumping hoppers >Automatic forklift drum grabbers
Automatic drum grabber
< Previous




Automatic forklift drum grabbers

  Automatic drum grabber for forklift truck - Mixed drum grabber
   Capacity 500 kg/drum grabber

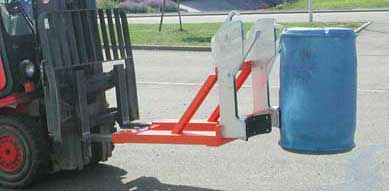

Automatic double drum grabbe for automatic handling of 2 drums
Automatic double drum grabber for automatic handling of 2 drums

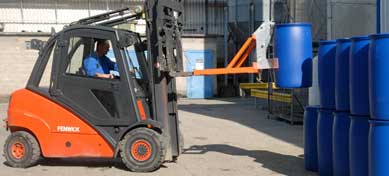

Automatic drum grabber for automatic handling of 1 drum
Automatic drum grabber for automatic handling of 1 drum


Automatic grip the drums !
Ideal for handling drums,
Permanent gripping independent of the weight of the drums.

The gripping safety is ensured even on uneven ground !

Theses forklift drum grabbers are specially adapted for taking plastic drums (LRing) or metal drums with full opening, without damage, with a total clamping reliability.

  • Plastic drums handling( L-Ring)
  • Metal drums handling (full opening)
  • Galvanized drum grabbers
  • Universal frame allowing the attachment of different models of drum grabber (from 1 to 2 grabs), orange finish
  • Safety chain
Forklift automatic drum grabber
Management of plastic drums
(L-Ring)
Management of metal drums
(full opening)
Automatic double drum grabber for automatic handling of 2 drums

Quotation request (Click on the reference below)

Drum grabber Ref. Capacity
(kg)
Number of grabs
(mm)
Overall width
(mm)
Overall length
(mm)
Overall heigth
(mm)
  C1PM 500 1 780 1230 850
  C2PM 1000 2 870 1230 850

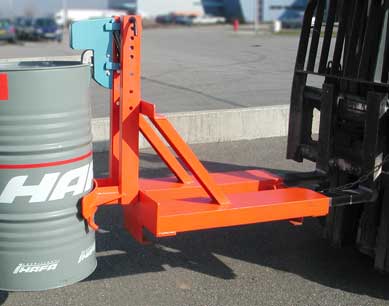

  Automatic drum grabber for forklift truck - Drum grabber for metal drums
   Capacity 500 kg/drum grabber




Pince à fûts pour chariot élévateur


Automatic grip the drums !
Permanent gripping independent of the weight of the drums

  • Metal drums handling (full opening)
  • Cadmium-plated steel mechanism
  • The gripping safety is ensured even on uneven ground !
  • Permanent gripping independent of the weight of the drums (this allows handling of empty drums)
Automatic drum grabber for forklift truck - Drum grabber for metal drums

Quotation request (Click on the reference below)

Drum grabber Ref. Capacity
(kg)
Number of grabs
(mm)
Overall width
(mm)
Overall length
(mm)
Overall heigth
(mm)
  C1NM 500 1 780 1230 850
  C2NM 1000 2 945 1230 850
