Expresso pivoting dock barrier
Dock guardrails
Expresso pivoting dock barrier

Safety barriers - Dock barriers

Double-leaf pivoting steel dock barrier

Ref. BQPI011

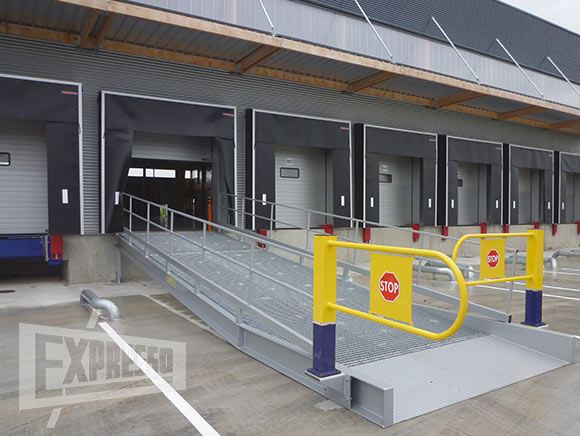

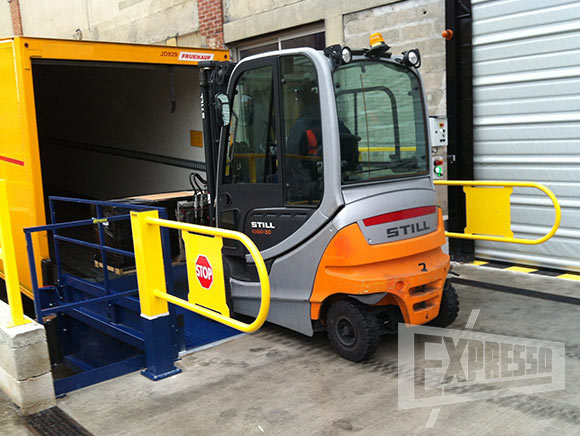

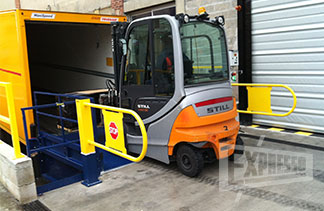

Stop dock falls! Secure the area around loading zones with Expresso pivoting safety barriers

These two-leaf pivoting steel dock barriers are ideal for securing the area around loading docks. These pivoting manual barriers are extremely robust and designed to withstand intensive use. They comply with labour regulations on personnel safety (art. R233.45 and L230.2 of the French Labour Code).

  • 90° opening manual barrier
  • Standard leaf length 1500 mm, possible length up to 2000 mm(to be defined at the time of the study)
  • Swivel posts H=1145 mm, 140 x 140 mm
    Base 215 x 215 mm
  • Ø42 mm steel tube barriers with Stop panels
  • Epoxy paint finish
    - Movable part yellow RAL1023
    - Fixed part blue RAL5003
  • Options :
  • Opens from 90 to 270° in 45° steps
  • Closing magnet kit
  • Opening magnet kit
  • Manual bolt
  • Manual or electromagnetic trigger locking
  • Expresso pivoting dock barrier

    Dowel-mounted dock safety guardrail

    Ref. GCCPxx - GCCGxx - GCCAxx

    Securing the area around transhipment areas with dockside guardrails

    Guardrails are fixed safety barriers to make loading docks and their surroundings safe by preventing pedestrians or handling equipment from falling.

  • Guardrail height: 1100 mm
    • Supplied by the linear metre, including dowel plates
    • Plinth height 100 mm
    • Epoxy paint finish (GCCPxx) or hot-dip galvanised finish (GCCGxx)
    Options and accessories:
  • Removable square Guardrail (GCCAxx)
  • Gravity dock gates
  • Dock stairs
  • Railings, pivoting barriers and staircases
    Railings, swing barriers and stairs
    Gravity dock gate
    Gravity gate
    Guardrail and swing barriers

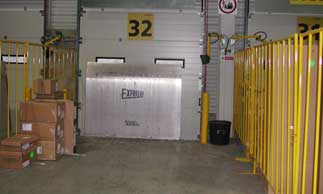

    Mobile safety barriers for delimitation area

    Ref. BQST1820 - BQST1830

    These safety barriers allow the delimitation of areas of warehouses and loading docks

    • Robust tubular steel construction
    • Two standard lengths: 2000 mm and 3000 mm
    • Simple hook-and-loop fastening system to secure barriers together
    • Two 500 x 100 mm wide-base steel feet
    • Yellow epoxy paint RAL 1023 finish
