Flexible transparent doors & curtains - Ref. PTLT1 - 2 - 3 - 6

Option : 2 flexible orange signalling opaque strips orange on the borders of the curtains.

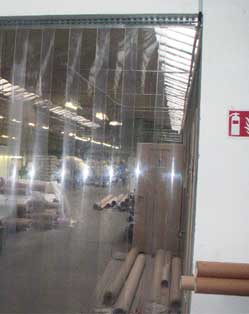

Made of transparent flexible PVC strips, these flexible curtains allow to close any opening or passageway while maintaining the light, in improving the thermal insulation, the protection against dust, splashing and noise. These flexible PVC strip curtain doors can be mounted either applies (on your support) or under the lintel (under your support).

Dimensions :
200 x thickness 2 mm (for pedestrians), 300 x thickness 3 mm (for motorized equipment), 400 x thickness 4 mm (intensive use)

Curtain type :
Standard (-15/+50°C), Extreme Cold (-25/+30°C), Opaque (white, black, light gray, orange), antistatic, flame Retardant (M2) : anti fire

Overlaps : minimum overlap 1/3 often used for low-rise interior walls, medium overlap 2/3 (most cases), Total overlap : double strips overlap

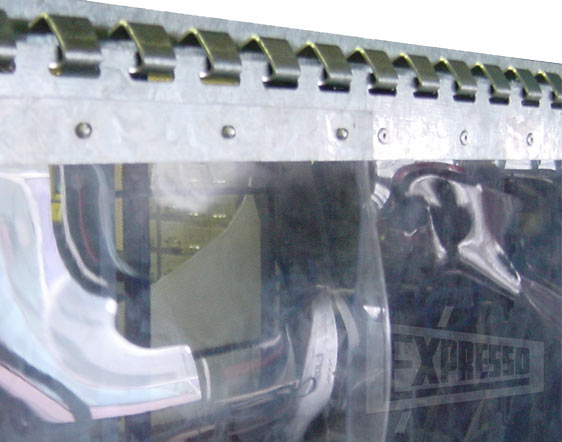

	Flexible door with PVC strip curtains - Model PTLT1 - Hook system, releasable strip curtains Optional galvanized or stainless steel

Quick snap and quick release of the transparent strips. Each strip can be unhooked individually and partially (seasonal use). This flexible PVC strip curtains are attached to a bracket which is fixed on or under your support.

Quotation request >

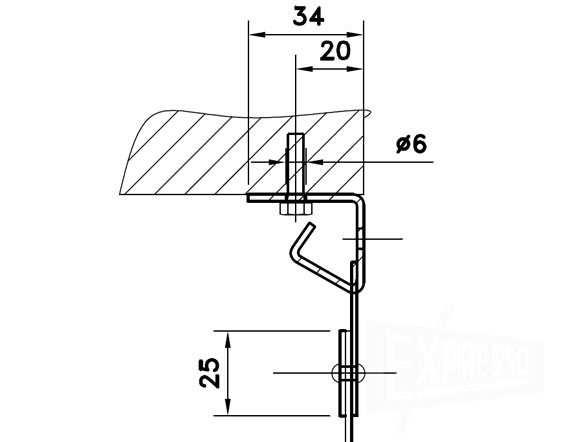

Fixing the flexible door
on the support :

Flexible door with PVC strip curtains - Model PTLT1 - Hook system, releasable strip curtains

Fixing the flexible door under the support :

Flexible door with PVC strip curtains - Model PTLT1 - Hook system, releasable strip curtains

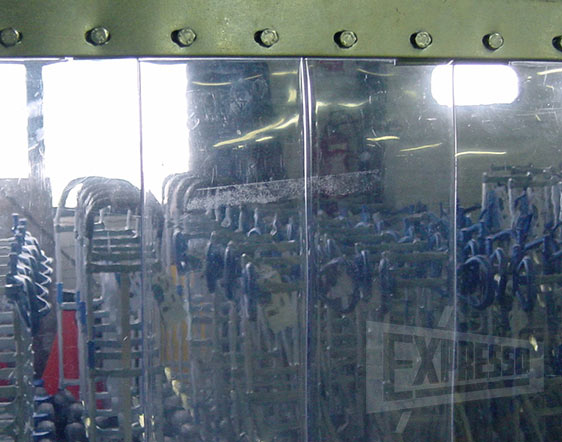

	Flexible door with PVC strip curtains - Model PTLT6 - Economic model : Fixed system Galvanized steel

The transparent strips are attached (pinch) permanently between 2 flat irons
The flexible curtain is delivered in one or more sections ready to install and marked.

Quotation request >

Flexible door with PVC strip curtains - Model PTLT6 - Economic model : Fixed system

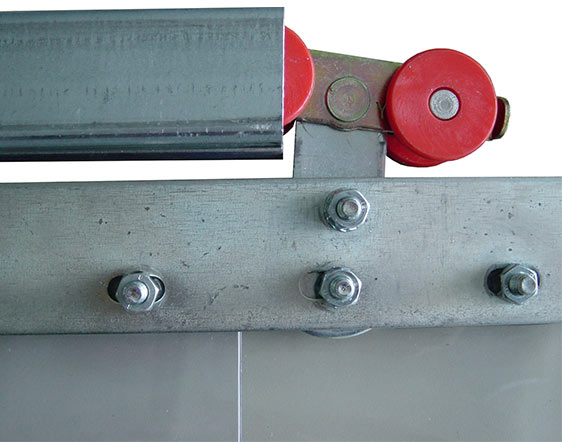

	Flexible door with PVC strip curtains - Model PTLT3 - Sliding support on rail Galvanized steel

Flexible door mounted on mobile supports (bearings) and guided in a rail. It's allow to move the strip curtain in front of the opening or against the wall (in continuation). Fast and convenient when you want to clear the opening (check if you have the necessary space for the release of the flexible curtain). The flexible curtain is delivered in one or more sections ready to install and marked.

Quotation request >

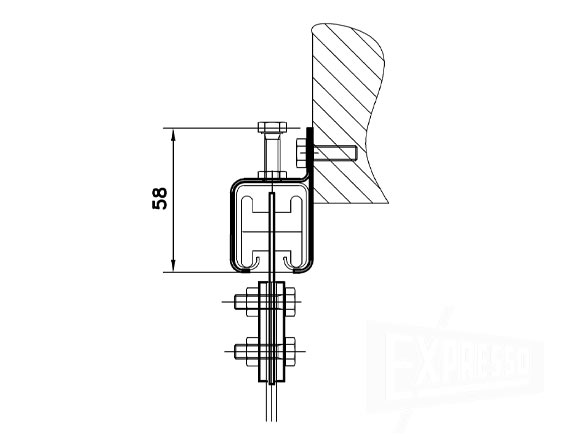

Fixing the flexible door
on the support :

Flexible door with PVC strip curtains - Model PTLT3 - Sliding support on rail

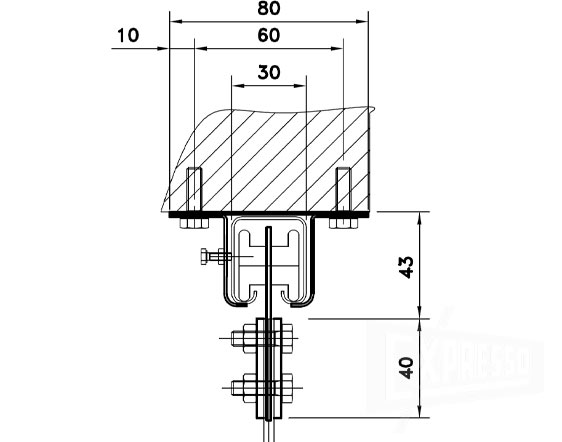

Fixing the flexible door under the support :

Flexible door with PVC strip curtains - Model PTLT3 - Sliding support on rail


	Flexible door with PVC strip curtains - Model PTLT2 - Articulated oscillating support Galvanized steel

Recommended system for large heights, to better accompany the flexible curtain in the 2 directions (in/out). The strips are permanently attached to a tube which circularly rotates around its axis. Recommended system if the free opening height exceeds 4.5 m.The flexible curtain is delivered in one or more sections ready to install and marked.

Quotation request >

Fixing the flexible door
on the support :

Flexible door with PVC strip curtains - Model PTLT2 - Articulated oscillating support

Fixing the flexible door under the support :

Flexible door with PVC strip curtains - Model PTLT2 - Articulated oscillating support
