Loading dock lights - Loading dock spotlights

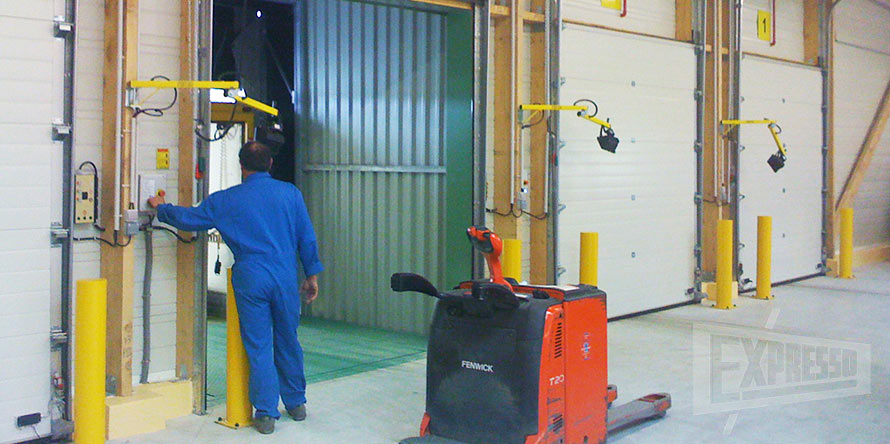

The dock spotlights allows to improve security of the staff during loading and unloading operations when inside trailer brightness is reduced or during night working time. They are replacing or coming in addition to eventual existing ligts installed on the handling machines. Those, when existing, see indeed their efficiency most of the time limited by the transported load.It is then peremptory to install an extra dock spotlight.

  Halogen loading dock spotlight - Ref. PJQU60




Halogen loading dock spotlight Expresso


Halogen loading dock spotlight Expresso


The halogen dock spotlight allows to limit the risk of collision due to a lack of lighting !

  • Black lacquered steel floodlight 180 x 145 mm
  • Swivel steel arm equipped with 3 joints for orientation
  • Wiring integrated in the joint tubes
  • On hold cable length 1.5 m (supplied)
  • On / off switch for wall mounting
  • Bulb 230V - 300W R7S 11 x 118 supplied
  • Power 230 V single-phased (+ earth)
  • Length of extended arm 1200 mm
  • Weight: 8 kg

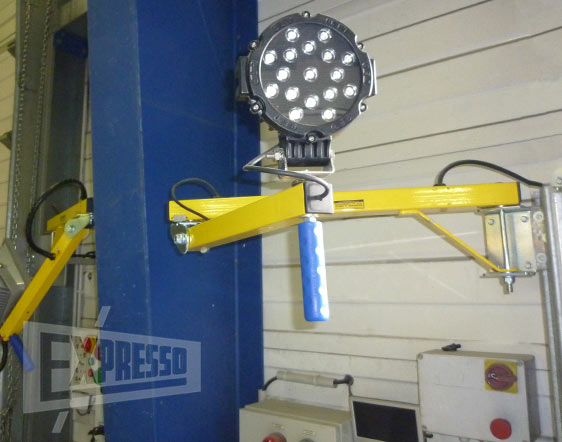

  LED loading dock spotlight for directional lighting - Ref. PJQU100




LED loading dock spotlight for directional lighting


LED loading dock spotlight for directional lighting


Installing an additional light allows to illuminate the most hazardous areas and to counteract the luminous contrasts requiring a pupil time adaptability, potential source of hazard.

  • Articulated dock spotlight swivel with 3 joints
  • IP64
  • 17 LED floodlight 24V DC, 50 Watt
  • Extended length: 1150 mm
  • Integrated Transformer 230 V, 24V DC, 80 VA
  • On / off switch for wall mounting
  • Lighting inside of trailers (10 m): 110 lux
    in conformity with INRS ED6059
  • Lifetime: 25 000 hours
  • Plastic operation handle
  • Power: 230V single-phase
  • Weight 9 kg



  LED loading dock spotlight with a wide lighting angle - Ref. PJQU90




LED loading dock spotlight with a wide lighting angle


LED loading dock spotlight with a wide lighting angle


Provides illumination of areas thanks to its wide lighting angle

  • L x H X D of the floodlight 260 x 182 x 40 mm
  • IP65
  • Extended length: 1150 mm
  • On / off switch for wall mounting
  • Light restoration ≈ 4000 lumens
  • Lifetime: 25 000 hours
  • Grey spotlight with yellow swivel arm
  • Operation handle with plastic cover
  • Weight 7 kg
