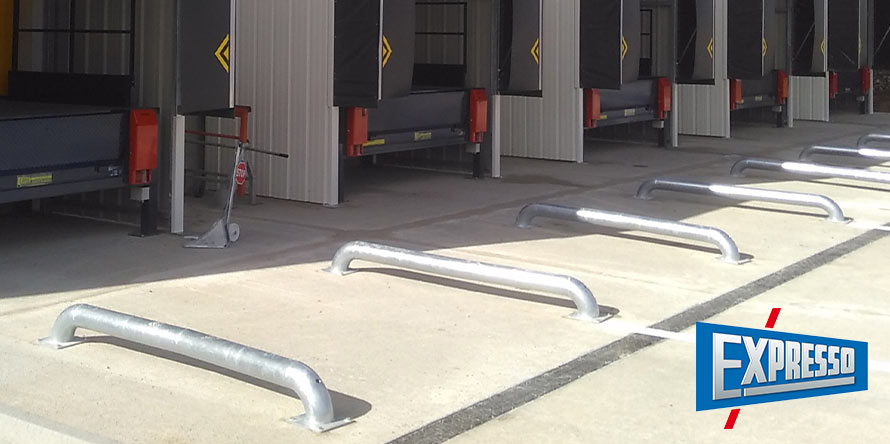

Galvanized wheel guides Expresso
< Previous




Loading dock wheel guides
  Galvanized wheel guides to bolt - Ref. GRFI2400

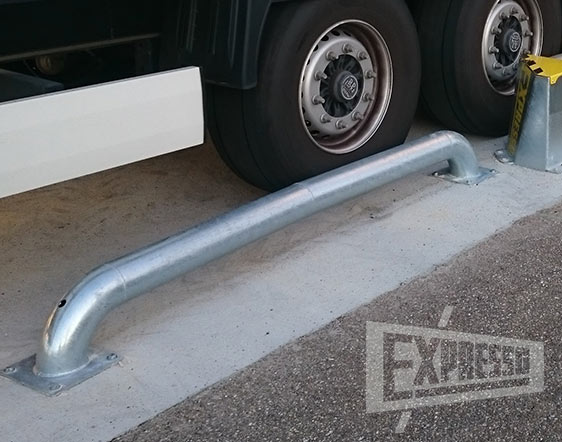

Galvanized wheel guides Expresso

Guide-roues
Anti-crushing ! The wheel guides, by guiding trucks, allows to prevent a person from being crushed between 2 vehicles !
The wheel guides ensure the protection of vehicles, equipments and people

The wheel guides optimize the docking of trucks in a simple and economical way.

  • Wheel guide pair : right and left model
  • Galvanized steel tube strong construction
    Ø168 x 4,5 mm
  • 3 support points : baseplates 350 x 350 mm thickness 8 mm
  • Dowel fixing on the ground or on concrete blocks


    Galvanized wheel guides Expresso

Demande de devis  (Cliquez sur la référence ci-dessous)
  Wheel guide ref. Length
(mm)		 Overall height
(mm)		 Height from the ground (mm) Diameter
(mm)		 Unit weight
(kg)
  GRFI2400 2400 300 300 168 71
  Universal galvanized wheel guides - Ref. GRFI24140




Universal galvanized wheel guides Expresso
The symmetric construction allows installation on the left or right side.

  • Strong construction, galvanized steel tube Ø140 x 4 mm
  • 2 support points, baseplates 250 x 250 mm thickness 8 mm
  • Dowel fixing on the ground or on concrete blocks

    Universal galvanized wheel guides Expresso
Universal wheel guides GRFI24140 yellow powder coating
Universal wheel guides GRFI24140 yellow powder coating

Quotation request (Click on the reference below)
  Wheel guide ref. Length
(mm)		 Overall height
(mm)		 Height from the ground (mm) Diameter
(mm)		 Unit weight
(kg)
  GRFI24140 yellow 2400 265 265 140 36
  GRFI24140 2400 265 265 140 36

  Universal concrete-embedded galvanized wheel guides - Ref. GRSC24140




The symmetric construction allows installation on the left or right side. Delivered by pair, folded off anchoring tabs.

  • Strong construction, galvanized steel tube Ø140 x 4 mm.
  • Off anchoring tabs (for casting into concrete)
  • Recommended height above the ground : 300 mm
  • Overall height 765 mm
  • Option : Yellow powder coating

    Guide-roues universel à sceller en acier galvanisé

Quotation request (Click on the reference below)
  Wheel guide ref. Length
(mm)		 Overall height
(mm)		 Height from the ground (mm) Diameter
(mm)		 Unit weight
(kg)
  GRSC24140 2400 765 Conseillée 300 140 40

  Concrete-embedded galvanized wheel guides - Ref. GRSC2400




Concrete-embedded galvanized wheel guides Expresso


This wheel guide has off anchoring tabs.
It is designed to be embedded in concrete

  • Strong construction, galvanized steel tube Ø168 x 4,5 mm
  • Recommended height above the ground : 300 mm
  • Off anchoring tabs (for casting into concrete)

    Concrete-embedded galvanized wheel guides Expresso

Quotation request (Click on the reference below)
  Wheel guide ref. Length
(mm)		 Overall height
(mm)		 Height from the ground (mm) Diameter
(mm)		 Unit weight
(kg)
  GRSC2400 2210 800 Conseillée 300 168 73

  Concrete wheel guides - Ref. GRBE3000




Concrete wheel guides

Concrete wheel guides



Concrete wheels guides are highly resistant to shocks, their rounded shape allows not damage the trucks in case of bad trajectory
  • Reinforced concrete 300 kg/m3
  • Forklift pockets
  • Fixing hole Ø80 mm for ground anchoring
  • Delivered with :
    - Anchor irons
    - Quick setting mortar



Quotation request (Click on the reference below)
  Wheel guide ref. Length
(mm)		 Overall height
(mm)		 Height from the ground (mm) Unit weight
(kg)
  GRBE3000 3000 300 300 330
