Manual loading dock boards


	Alluminium loading dock board with forklift pockets specific Dock / Wagon or Truck Ref. TW Capacity 4000 kg

Alluminium loading dock board with forklift pockets

Alluminium loading dock board with forklift pockets

High security of use of the dock board thanks to the anti-skid safety stop on underside

Wagons transhipment
(or trucks)
High resistance aluminum profile
Non-skid grooved surface
For hand trucks, roll, pallet truck and forklift trucks max. 4000 kg
Anti-skid safety stop on underside
Handhold cutouts on either side
6 ton models on request

OPTIONS :
Retractable forklift pockets
L=185 W=68 H=30 mm
Displacement castor
ACPO6 Ø125 mm

Alluminium loading dock board with forklift pockets

Quotation request (Click on the reference below)
Dock board Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Space dock/wagon (mm)	Weight (kg)
TW 7205	4000	520	1500	+ 50	190 à 290	27
TW 7210	4000	590	1500	+ 50	260 à 360	29
TW 7215	4000	690	1500	+ 50	360 à 460	33


	Manual loading dock boards - Ref. SM Capacity from 4000 to 5000 kg

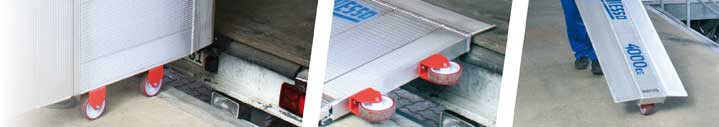

Manual loading dock boards

High maneuverability / high capacity

High resistance aluminum profile loading dock board
Non-skid surface
Articulated access lip
Anti-skid safety stop on underside
Non-slip rubber band and noise canceling at the support point of the ramp on the floor

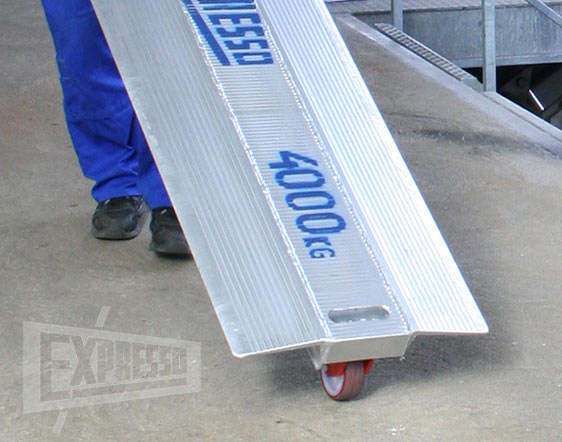

Castors
Handhold cutouts

Manual loading dock boards

Quotation request (Click on the reference below)
Dock board Ref.		Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
SM 7005		5000	1270	1255	+ 200	52
SM 7010		5000	1270	1505	+ 200	62
SM 7025		4500	1560	1255	+ 250	61
SM 7030		4500	1560	1505	+ 250	72
SM 7035		4300	1760	1255	+ 285	67
SM 7040		4300	1760	1505	+ 285	79
SM 7045		4000	1960	1255	+ 320	73
SM 7050		4000	1960	1505	+ 320	86


	Manual loading dock boards - Horizontal movement - Ref. BSM Capacity from 2500 to 5000 kg

Manual loading dock boards

Ergonomic and rapid deployment

High resistance aluminum profile loading dock board
Non-skid surface
Articulated access lip
Anti-skid safety stop on underside
Non-slip rubber band and noise canceling at the support point of the bridge on the floor
2 retractable castors
Removable operating lever

OPTION :
Retractable forklift pockets
L=185 W=68 H=30 mm

Manual loading dock boards

Quotation request (Click on the reference below)
Dock board Ref.	Charge utile (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
BSM 1515	4500	1500	1500	+ 225	91
BSM 1517	4700	1500	1750	+ 225	104
BSM 1520	5000	1500	2000	+ 225	117
BSM 2015	4000	2000	1500	+ 300	115
BSM 2017	4200	2000	1750	+ 300	132
BSM 2020	4500	2000	2000	+ 300	149
BSM 2515	3500	2500	1500	+ 375	139
BSM 2517	3700	2500	1750	+ 375	160
BSM 2520	4000	2500	2000	+ 375	181
BSM 3015	3000	3000	1500	+ 450	163
BSM 3017	3200	3000	1750	+ 450	188
BSM 3020	3500	3000	2000	+ 450	213
BSM 3515	2500	3500	1500	+ 525	187
BSM 3517	2700	3500	1750	+ 525	216
BSM 3520	3000	3500	2000	+ 525	245


	Steel manual loading dock boards - Horizontal movement - Ref. B/ACIER Capacity from 3500 to 4000 kg

Steel manual loading dock boards

Dock boards for high service ranges

Steel dock board
Articulated access lip
Anti-skid safety stop on underside
Non-slip rubber band and noise canceling at the support point of the bridge on the floor
2 retractable castors
Removable operating lever

Steel manual loading dock boards

Quotation request (Click on the reference below)
Dock board Ref.	Charge utile (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
B 8840	4000	1500	1250	+ 250	141
B 8840 E	4000	1500	1500	+ 250	175
B 8850	4000	1875	1250	+ 300	150
B 8850 E	4000	1875	1500	+ 300	200
B 8852	4000	2300	1250	+ 370	182
B 8854	3500	2725	1250	+ 450	210
