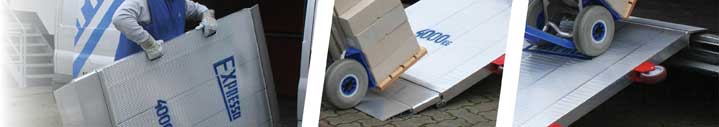

Aluminium walk ramp
  Aluminium walk ramp - Ref. WAL
   Capacity from 1500 kg to 4000 kg




Aluminium walk ramp

Aluminium walk ramp
Ramp used for manual transfer of heavy equipment or small motorized vehicles in commercial vehicles
  • Articulated access lip with non-slip rubber band and noise-canceling (at the support point of the ramp on the ground)
  • Anti-skid high-strength aluminum profile to transverse grooves as strong as steel but 50% lighter
  • Two transport wheels
  • Anti-skid safety stop on underside
  • Handhold cutouts

    OPTION :

  • Side edges 30 mm high

    Aluminium walk ramp - Ref. WAL

Quotation request (Click on the reference below)
  Ramp Ref. Capacity
(kg)		 Length
(mm)		 Width
(mm)		 Service range
(mm)		 Handhold cutouts Weight
(kg)
  WAL 2007 4000 2000 750 600 2 46
  WAL 2010 4000 2000 1000 600 2 61
  WAL 2507 3400 2500 750 750 2 57
  WAL 2510 3400 2500 1000 750 2 75
  WAL 3007 2700 3000 750 900 2 68
  WAL 3010 2700 3000 1000 900 2 89
  WAL 3507 2300 3500 750 1050 4 79
  WAL 3510 2300 3500 1000 1050 4 104
  WAL 4007 1900 4000 750 1200 4 90
  WAL 4010 1900 4000 1000 1200 4 118
  WAL 4507 1700 4500 750 1350 4 101
  WAL 4510 1700 4500 1000 1350 4 132
  WAL 5007 1500 5000 750 1500 4 111
  WAL 5010 1500 5000 1000 1500 4 146
