Aluminium dock plates

< Previous

Aluminium dock plates

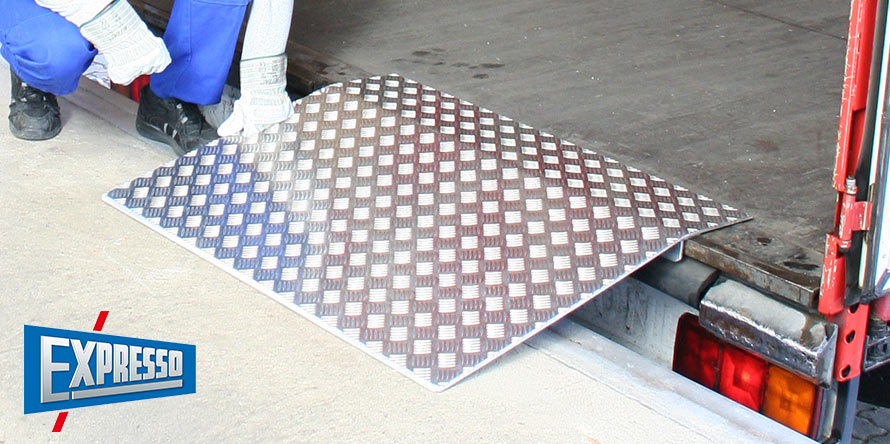

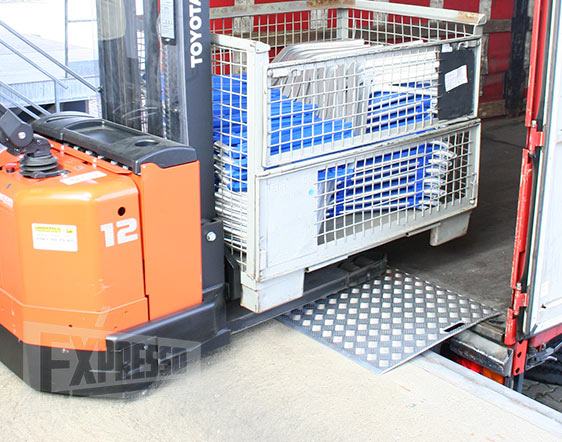

	Light mobile aluminium dock plate Capacity from 1000 to 1500 kg

Strong and light loading dock plates !

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
L 8761	1000	800	1000	+/- 150	18
L 8763	1000	1000	800	+/- 170	18
L 8764	1000	1500	800	+/- 280	30
L 8769	1000	1000	1000	+/- 170	21
L 8770	1000	1200	1000	+/- 220	26
L 8781	1500	800	1250	+/- 150	25
L 8783	1500	1000	1250	+/- 170	30
L 8790	1500	1200	1250	+/- 220	39
L 8784	1500	1500	1250	+/- 280	47


	Aluminium loading dock board with retractable handles Capacity 4000 kg

Dock board with round aluminium profil to reduce shaking to the passage of forklift trucks ! Intensive use.

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
L 8779/1250	4000	550	1250	+/- 75	26
L 8779/1500	4000	550	1500	+/- 75	30
L 8779/1750	4000	550	1750	+/- 75	36
L 8779/2000	4000	550	2000	+/- 75	40

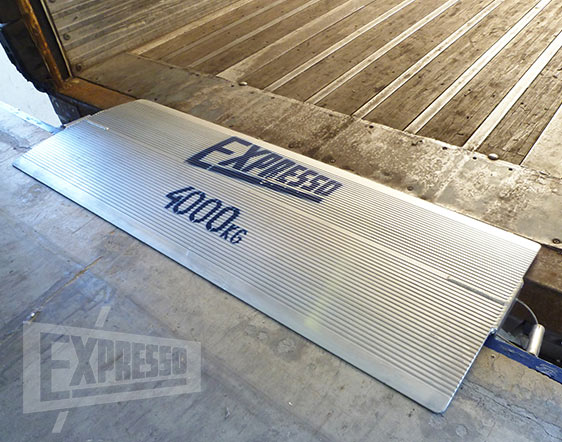

	Rounded profile aluminium loading dock board Capacity from 2000 to 4000 kg

Dock board with round aluminium profil to reduce shaking to the passage of forklift trucks !

Anti-Shake rounded profile (3 ply)
High resistance grooved aluminum sheet
For hand trucks and electric or manual pallet truck max. 2000 kg (4000 kg for the reinforced models)
Anti-skid safety stop on underside
Handhold cutouts on either side

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
L 8773/10	2000	700	1000	+ 100	16
L 8773/15	2000	700	1500	+ 100	25
L 8773/17	2000	700	1750	+ 100	29
L 8773/20	2000	700	2000	+ 100	33
L 8773/15R	4000	700	1500	+ 100	36
L 8773/17R	4000	700	1750	+ 100	42
L 8773/20R	4000	700	2000	+ 100	48


	Alluminium loading dock board with forklift pockets - Ref. L8778 Capacity 6000 kg

Designed to be put in place with a forklift

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
L 8778/15	6000	800	1500	+ 115	68
L 8778/20	6000	800	2000	+ 115	90
