Docking station for wheel chocks - Cale Box

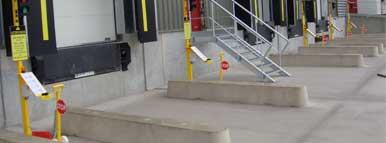

Cale Box docking station for wheel chocks
Ref. Cale Box ACCL000174
The Cale Box Expresso docking station lets you store, secure and manage the use of the wheel chock.
The Cale Box docking station is a storage support for the wheel chock, with an orange warning light, an audible alarm, warning signs and a two-colour light (optional). The device can be used to check that the wheel chock is in the stowed position, thanks to a token-operated monneyeur, and to manage the various servo-controls when the chock is in place under the truck wheel.
A token (striated model) is provided to the lorry driver by the site operator in exchange for an identity document, which will be returned once the hold has been tidied up and the token returned.
A token (striated model) is provided to the lorry driver by the site operator in exchange for an identity document, which will be returned once the hold has been tidied up and the token returned.
Height without lights: 1000 mm
Height with lights: 2000 mm
Length x Width: 600 x 300 mm
Options for Cale Box docking station:
Wheel chocks on docking stations Cale Box

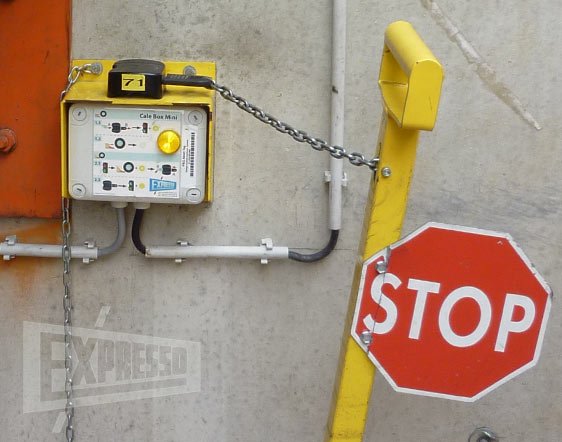

Wall docking station Cale Box mini
Ref. ACCL000172
The more compact Cale Box mini docking station is ideal when floor space is limited.
The wall-mountedCale Box mini docking station includes:
- Metal support 175 x 175 x 105 mm
- ABS box 161 x 121 x 87 mm IP65)
It is installed at the edge of the dock and manages the two-tone light(*) during the wedging process. The orange light on the Cale Box Mini box informs the user that the dock wedge is securely fastened to the Cale Box mini coin mechanism. The chocking procedure is displayed on the box
(*) The light and the wheel chock are part of the signalling kit.
- Metal support 175 x 175 x 105 mm
- ABS box 161 x 121 x 87 mm IP65)
It is installed at the edge of the dock and manages the two-tone light(*) during the wedging process. The orange light on the Cale Box Mini box informs the user that the dock wedge is securely fastened to the Cale Box mini coin mechanism. The chocking procedure is displayed on the box
(*) The light and the wheel chock are part of the signalling kit.
Options:
