Universal electric wheel chock with eccentric lever
< Previous




Universal electric wheel chock with eccentric lever - Ref. CLEL8xx



Universal electric wheel chock with eccentric lever


View PDF



Universal electric wheel chock with eccentric lever



Cale universelle à excentrique Expresso

When the wheel chock is blocked under the truck wheel the eccentric lever allows to easily disengage in two or three movements back and forth up and down.

The wheel chock is universal and secures as well tractor-trailer as LCV !
Designed for small and big wheels !

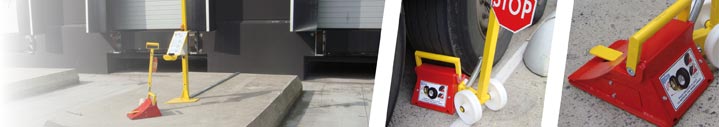

This universal wheel chock has the same options and accessories of the Wheel chock CLEL7xx, it has an rotating enlarger support which when pivoted in upper position (see left picture) allows to chock the wheels trucks of large diameter
.
When it is folded on the front in the lower position (see picture bottom left), the rotating enlarger support easily passes under the vehicle mudguard of LCV and can chock small and medium wheels.

Dock Safety :
This universal electric wheel chock helps to improve the safety of the loading docks. It reduces the risk of accidents (dock falls) by limiting the risk of accidental departure dockside trailers.

       Universal electric wheel chock with eccentric lever

  • Steel electric wheel chock : Height (Big wheel) rotating enlarger support raised 273 mm, height (small wheel) rotating enlarger support down 190 mm, length 395 mm, width 235 mm
  • Polyamide castors Ø160. 1,5 m
  • High resistance spiral cable stretchable to 6.5 m
  • Standard eccentric metal operating lever with stop sign


Options :

  • Galvanized plate ref. ACCL7021
    for a total slip resistance of the wheel chock
  • Metal chain used to protect the cable and the wheel chock
  • 10 or 20 m automatic cable reel
  • Automatic cable reel steel protection (over the top)
  • Wireless wheel chock (no need of cable and automatic cable reel) : a transmitter is present in the wheel chock and a receiver in the control box.
See also   Electric wheel chock with eccentric lever
