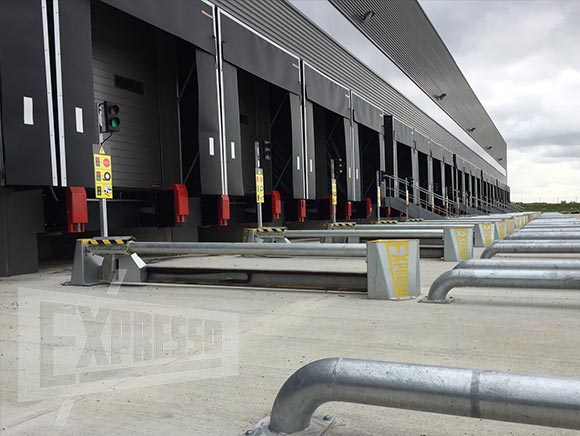

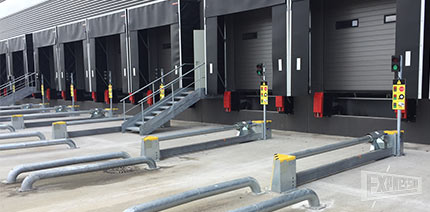

The Manual blocker patented system Expresso enables to secure transhipment operations at the loading dock

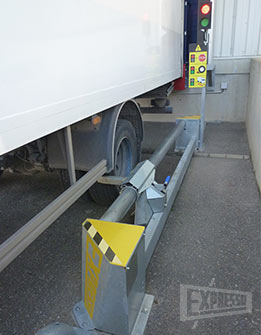

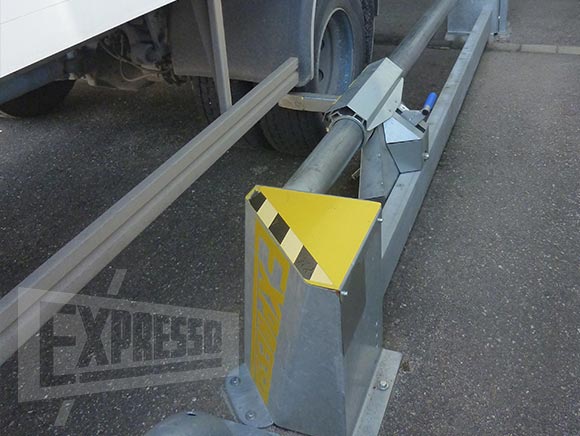

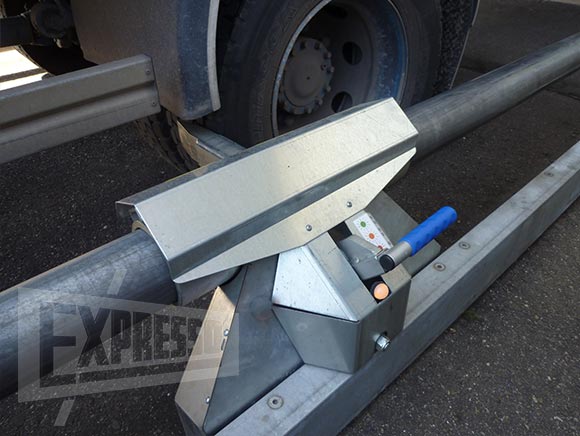

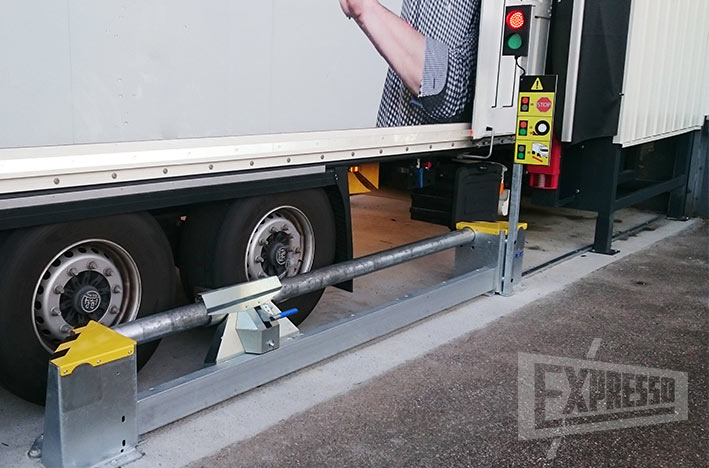

The driver uses the operating lever to slide the locking arm to the level of the wheel then lower the lever to deploy it. When the locking arm is raised in front of the wheel, it is electromagnetically locked and the servo controlled door and leveler enables secure operations. The system is coupled with an audible (buzzer) and visual signaling that in case of problems will prevent users. Once locked, inadvertent departure of the truck is impossible, eliminating the risks of fall of dock. After loading / unloading finished, the PIT operator authorize the release of the manual blocking system allowing the driver to release the truck by lowering the locking arm.
- Manual lock up blocking system
- Automatic locking which control the docking equipments :
door, dock leveler
- Galvanized structure, very resistant
- 1 straight wheel guide
- Optical detectors leveler or door
- Control box 230 ou 400 V 50 Hz + earth / Control voltage 24 V
- External signalling : Bicolour LED light (red / green)
IP65 Ø100 mm
- Internal signalling : Red and green LED lights Ø65 mm
on the control box
- Integrated buzzer on control box
- Outdoor sign
- Chocking height 420 mm
- Overall dimensions 3950 x 450 mm
- Reduced maintenance
Options :
- Optical detector door open
- Additional wheel guide (in front of the manual blocker)
|
