Loading dock safety > Safety trailer jacks  > Safety trailer jacks stands

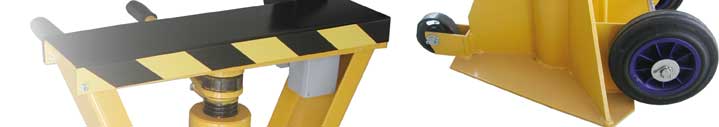

Safety trailer jacks stands
< Previous




Safety trailer jacks stands

  Safety trailer jack stand - Ref. BETJ70




Safety trailer jack stand

Safety trailer jack stand




Stop to falls of uncoupled trailers during loading operations !

The safety stand comes in addition to help the trailer standing legs and avoid tilting of the trailer during loading and unloading operations done by forklift.

  • Static capacity : 45 tons
  • Support surface length : 610 mm
  • Height adjustable : from 1000 to 1300 mm
  • 2 wheels Ø200 mm : Smooth-running flat tread, high elasticity,
    very low rolling resistance. Blue nylon rim
  • 1 steel positioning wheel Ø100 mm
  • Epoxy paint color finish yellow
  • Reversible ratchet mechanism right / left

Options
:

  • Locking system for trailer stabilizing jack stand : for locking the position of the safety jack under the trailer (padlock not supplied)

    Béquille de sécurité BETJ70
  • Wireless automatic control from the stand to all type of system related to its well set up under the trailer
   Béquille de sécurité BETJ70
  Safety trailer jack stand with crank handle - Ref. JACK-TS




Béquille de sécurité Jack TS

Béquille de sécurité Jack TS



Accident prevention during loading and unloading operations !

Easy and fast setting up of the safety stand under the trailer thanks to its big wheels, its handles and its crank with geared down speed

The safety trailer jack stand JACK-TS is a robust and stable trailer stabilizer which enables secure loading and unloading of trailers. The safety stand comes in addition to help the trailer standing legs and avoid tilting of the trailer during loading and unloading operations done by forklift.
The safety trailer jack stand JACK-TS has a load-lifting system function. The double speed crank system for making fast contact allows it to adapt to all types of trailers.

  • Static capacity : 15 tons
  • Support surface length : 730 mm
  • Depth : 695 mm
  • Height adjustable : from 920 to 1270 mm
  • Two rubber puncture-proof wheels Ø400 mm
  • Folding crank handle
  • Load-lifting system function
  • Oversized base for maximum stability
  • Option : Wireless automatic control from the stand
    to all type of system related to its well set up under the trailer

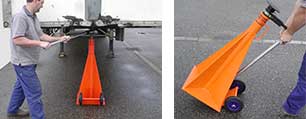

  Safety trailer jack stand - Ref. JACK-B / JACK-H / JACK-SB




Safety trailer jack stand

Trailer jack stand JACK-B / Trailer jack stand JACK-SB



Safety trailer jack stand


The standard safety trailer jacks stands Expresso, are intended to stabilize trailers during transhipment when they are uncoupled from the tractor.The stands are fitted with screw lifting cylinder (flat thread) and reversible ratchet. It can be used as a jack, for example, if the standing legs of the trailer are too deeply setted in a light soil .

  • Hinged resting surface or "hats" to compensate
    the eventual ground inclination
  • 2 rubber wheels fitted with roller bearings
  • Detachable operating handle
  • Larger resting "hat" Ø250 mm (option)


    Safety trailer jack stand

Quotation request (Click on the reference below)

Trailer jack stand Ref. Static load
(kg)
Dynamic load
(kg)
Support Diameter
(mm)
base L x l
(mm)
Adjustable lifting height
(mm)
Weight (kg)
  JACK-SB 40 20 160 450 x 450 de 670 à 970 56
  JACK-B 40 20 160 450 x 450 de 1150 à 1450 70
  JACK-H 40 20 160 450 x 450 de 1350 à 1550 71
See also   Safety trestle trailer jacks for trailers
