Loading dock safety > Safety trestle trailer jacks  > Standard safety trestle trailer jacks

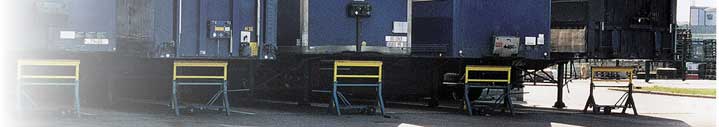

Standard safety trestle trailer jack Expresso
< Previous




Standard safety trestle trailer jacks

  Safety mobile trestle - Ref. JACK-TM
   Capacity 15 tons




Safety mobile trestle

   Safety mobile trestle - Ref. JACK-TM

  • Capacity: 15 tons
  • Width: 570 mm
  • Useful length: 1130 mm
  • Adjustable height between 1070 to 1320 mm




The safety mobile trestle has to be placed under the unhitched trailer from its tractor, it ensures the safety of transhipments by avoiding the tipping of the trailer !

Perfectly balanced on its two wheels when you move it, the trestle remains horizontal during the installation. This allows a precise height adjustment to minimise the space between the bottom of the trailer and the mobile trestle. Once positioned, the wheels no longer touch the ground and the trestle under the trailer is perfectly stable on its four stands. This prevents the trailer from tipping in case a parking stand fails or breaks.

- It adapts to all types of trailers thanks to its adjustable height
- Adjustable height :
Telescopic square tube, pin locking
- Very resistant, treated hardwood on top of the trestle
- Two wheels of Ø200 mm : Soft black rubber band,
blue nylon wheels, roller bearings
- Option: Rubber wheel chock type CLCC200
with metal support type SUCL201.

Standard safety trestle trailer jack Expresso

  Lowered and extended trestle - Ref. TRMO1800
   Capacity15 tons




Lowered and extended trestle

Lowered and extended, this trestle is designed to keep trailers using air suspension from tipping.


  • Capacity : 15 tons
  • Width : 570 mm
  • Useful length: 1800 mm
  • Adjustable height between 670 to 910 mm
