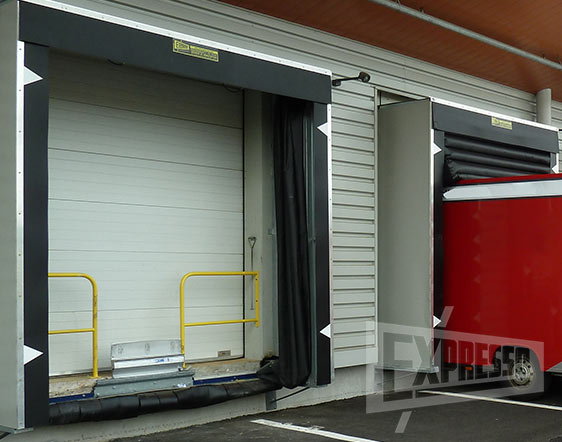

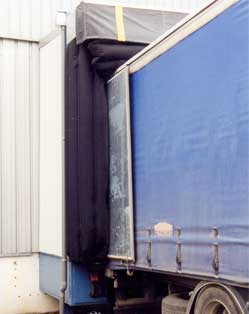

Inflatable dock shelter

Dock shelters provide a watertight link between the truck trailer and the warehouse wall. The inflatable dock shelter is the ideal solution for covering the entire width of the docked vehicle. - Protect your loading operations against heat loss!

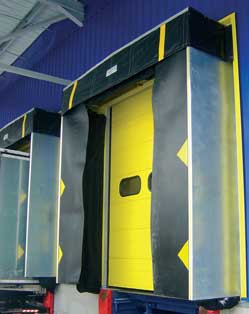

Biturbine inflatable dock shelter

ref. SAGO600

Request a quote

Inflatable twin-turbine dock shelter with galvanised sheet metal side skirts combining efficiency, strength and aesthetics:

Pre-assembled structure (roof and sides) in galvanised tubes covered with pre-painted galvanised sheets thickness 0.8 mm

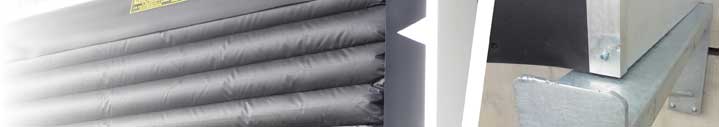

High-strength PVC inflatable cushions protected by 3 reinforced PVC façade decking 3 mm thick, protecting the airbags against rain, wind and sun.

Rainwater run-off on the sides of the dock shelter

Rapid inflation by 2 high-flow turbines and low-pressure systems that are not bulky and are judiciously positioned to avoid any impact from large vehicles.

Deflation releases the truck after just a few seconds.

The cushions are fully retracted behind the flaps (so there's no risk of tearing the lock when docking) using integrated elastic ropes and a counterweight for the upper cushion.

Turbines (right and left) positioned in the corners to reduce the risk of damage during truck docking operations.

Power supply required: 230 V / 700 W

Ref.
Inflatable dock
shelter

SAGO600

Width x Heightt

3400 x 3500 mm

Overall height
on the ground(1)

4700 mm

Profondeur cadre

800 mm

Min. and max. vehicle height

3500 mm / 4200 mm

Min. vehicle width

2200 mm

Curtain fall
frontal

1200 mm

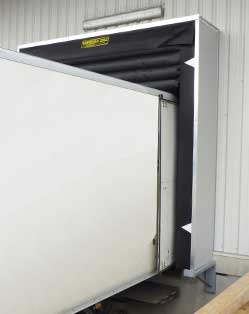

Inflatable dock shelter

Biturbine inflatable dock shelter

Inflatable twin-turbine dock shelter with galvanised sheet metal side skirts combining efficiency, strength and aesthetics:

(1) Recommended installation height
