• Width x Height : 3400 x 3500
• Depth : 650 mm
• Height tablier : 1000 mm
• Side curtains width : 700 mm
• Opening Width x H : 2200 x 2500 mm
• maximum retraction 400 mm (in this case the dock shelter rises of 130 mm)



NB: The facade that receives the dock shelter must be perfectly flat and in alignment. In addition, the cladding must stop at 30 mm around the airlock. Installation of a pre-frame is recommended.

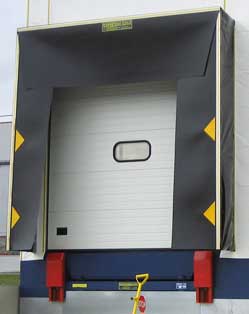

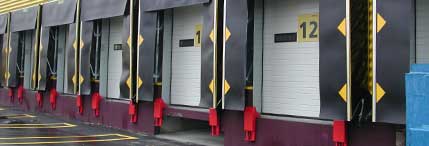

The dock shelter ensures tight connection between the trailer of the truck and the warehouse wall. It allows to minimize heat loss and protects personnel and goods from the weather.

The dock front for receiving dock shelters must be perfectly flat and aligned. In addition, the weatherboarding must stop at 30 mm around the dock shelter. The installation of a frame is advised.

• Retractable galvanized steel structure
  steel tube 60x30x2 mm
• Upper PVC curtain, bevelled corners
• Reinforced PVC side curtains
• Yellow guide strips on side curtains for drivers
• 2 thicknesses monofil polyester double side PVC coated
• Antistatic material 100% rot-proof, non-staining
• Good resistance to acids, bases and salts (except concentrated sulfuric acid and saltpeter)
• Highly resistant curtains to UV and weathering

  Curtains features :


  • Gray PVC curtain thickness 3 mm
  • Tear resistance (ISO 505) :
    Upper curtain : Longitudinal ≥ 750 N cross ≥900 N
    Side curtains : Longitudinal ≥550-700 N cross ≥900 N
  • Rupture strength (ISO 283) : Longitudinal 250 N/mm
  • Temperature range : -30°C to +90°C
  • Weight per m² :
    Upper curtain : 2,7 kg - Side curtains : 3,6 kg




• Width x Height : 3400 x 3400
• Depth : 600 mm
• Curtain height : 1000 mm
• Side curtains width : 600 mm
• Opening Larg. x H : 2200 x 2400 mm
• Maximum retraction 400 mm (in this case the dock shelter rises of 130 mm)

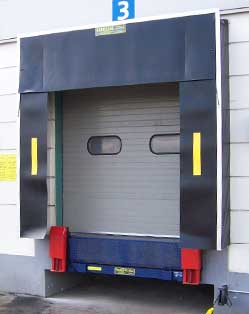

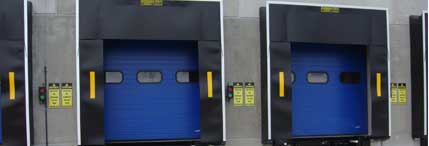

The dock shelter DSC-R is composed of a metal frame formed by a front frame and rear galvanized steel. The frames are interconnected by means of articulated arms. This dock shelter is closed with an integral peripheral covering, the upper part is provided with a side outlet for rainwater. Side curtains are provided with a yellow guide strip to help drivers to dock.

The dock front for receiving dock shelters must be perfectly flat and aligned. In addition, the weatherboarding must stop at 30 mm around the dock shelter. The installation of a frame is advised.

• Retractable galvanized steel structure steel tube 70x35x2 mm
• Upper PVC curtain in 3 parts
• Reinforced PVC side curtains
• Yellow guide strips on side curtains for drivers
• Antistatic material 100% rot-proof, non-staining

Curtains features :

• Black PVC curtain thickness 3 mm
• Tear resistance (DIN53363 / ISO 505) : Length 550 - 700 N, Width 900 N
• Rupture resistance (DIN 53354/ISO 283) : 250 N/mm
• Temperature resistance DIN53361 of -30° to +90° C
• Weight per m² : The curtains of 3000 g/m² consist of polyester bicomponent fibers, flexible layers in the longitudinal direction and rigid in the widthwise direction. The curtains are provided on one side with an antistatic PVC hard and very resistant topcoat. These materials make curtains highly resistant to ultraviolet rays. The material is also highly resistant to tearing, tensile strength and thermal variations.
