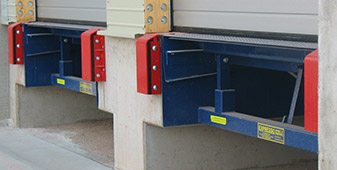

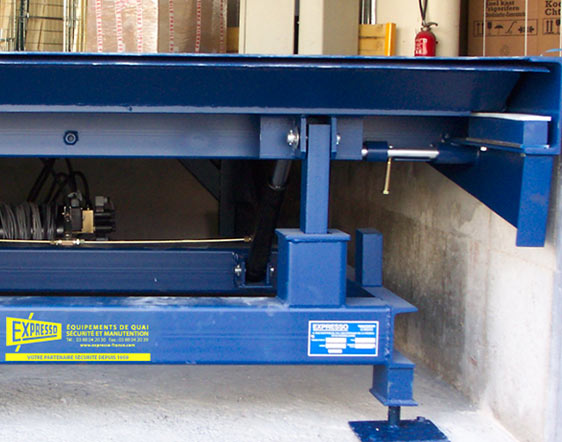

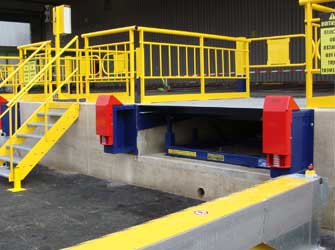

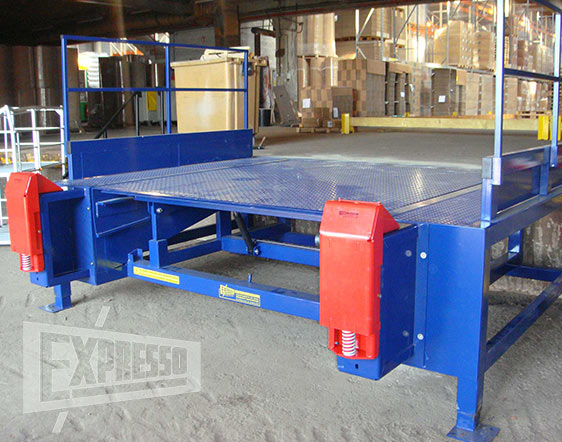

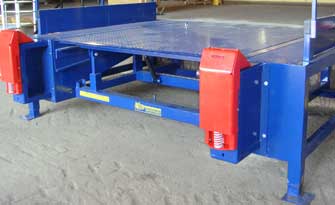

Telescopic lip dock levelers Expresso

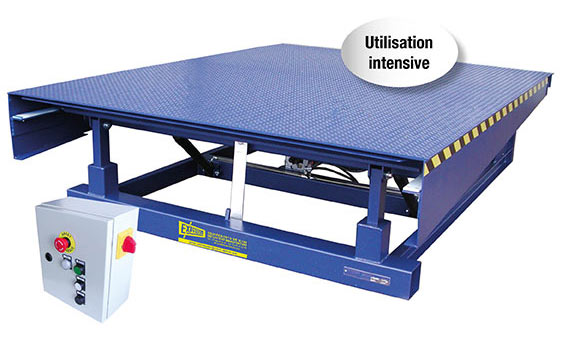

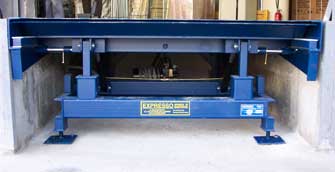

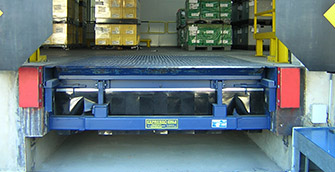

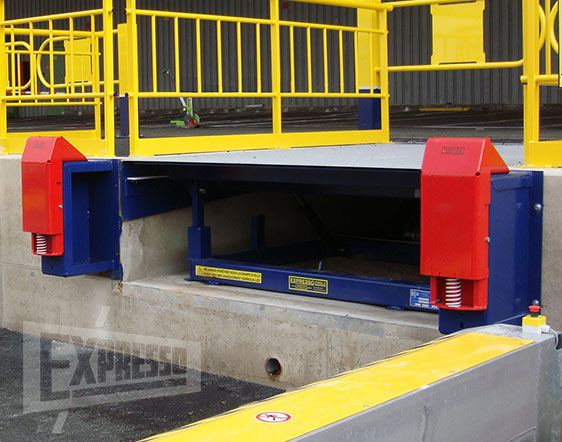

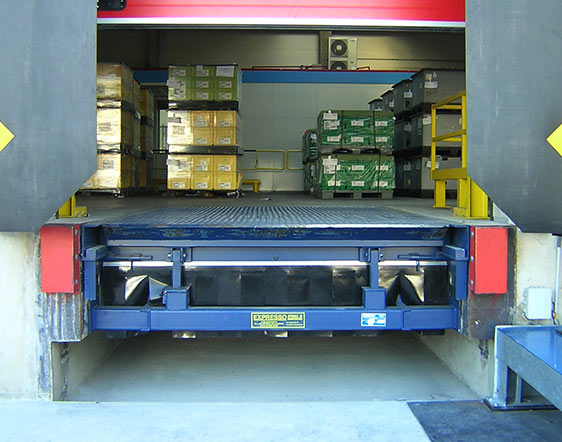

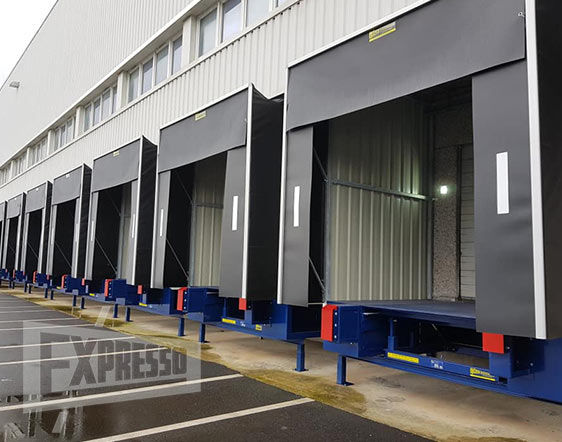

Telescopic lip dock leveler - Ref. STV

Dynamic load capacity 6/9/12 tons

Request a quote

Intensive use - Quick and precise adjustment of the telescopic leveler lip

In some cases, the swing lip leveler may not be sufficient, in which case it is preferable to use a telescopic lip leveler, particularly in the following cases:

Very low trucks (low bed trailers) pallets filled right up to the doors. These trucks can not be unloaded because it can not stand the swing lip on the floor. In this case it is necessary to move the vehicle to be able to position the lip leveler. In the case of drop trailers, transshipment is not possible.

Containers on trays offset from the rear of the vehicle. The swing lip is not long enough to reach the container floor.

In case of accidental departure of the truck during transhipment, the safety valve blocks locks the platform and the swing lip "floating" return in its rest position.

The solution: The Telescopic lip dock leveler removes all these disadvantages:

Fast and very accurate adjustment of the lip on the floor of the trailer

Its extension (500, 800 or 1000 mm) allows to reach the floor very far

The lip remains rigid in a parachute situation

Construction:

Dynamic capacity: 6/9/12 tons (depending on model)
(For loads of 15 tonnes or more, please contact us)

Lip length 500, 800 or 1000 mm

Extremely robust construction giving exceptional resistance capacity

IPE platform reinforcements, flame cut hinges of lip , UPN frame

Side lip guidance and polyethylene coating for the slip

Hydraulic:

Hydraulic and electrical components used chosen for their reliability and longevity

Onboard hydraulic unit
- 1.1 KW motor power flow 5 l / min
- Supply 400 or 230 V TRI, 50 Hz + earth
- Control voltage 24 volt, Sequence valve

2 hydraulic cylinders for the platform and one for the lip

Safety:

Safety skirts on both sides in 4 mm sheet metal

Mobile galvanised steel side skirts

Security strut for maintenance

Parachute valve centred between the 2 cylinders

Emergency stop with reset button

Our research department offers solutions for all possible configurations:

Existing pits for levelers

External chassis

Tunnel

Very intensive use

Heavy loads

Telescopic lip dock leveler reference

STV 20/20

STV 20/22

STV 25/20

STV 25/22

STV 30/20

STV 30/22

STV 35/20

STV 35/22

STV 40/20

STV 40/22

Capacity

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

Rest position length

2000 mm

2000 mm

2500 mm

2500 mm

3000 mm

3000 mm

3500 mm

3500 mm

4000 mm

4000 mm

Useful length

2500 mm

2500 mm

3000 mm

3000 mm

3500 mm

3500 mm

4000 mm

4000 mm

4500 mm

4500 mm

Platform width

2000 mm

2200 mm

2000 mm

2200 mm

2000 mm

2200 mm

2000 mm

2200 mm

2000 mm

2200 mm

Lip width

1950 mm

2150 / 2000 mm

1950 mm

2150 / 2000 mm

1950 mm

2150 / 2000 mm

1950 mm

2150 / 2000 mm

1950 mm

2150 / 2000 mm

Service range

+300 / -300 mm

+300 / -300 mm

+350 / -300 mm

+350 / -300 mm

+400 / -300 mm

+400 / -300 mm

+450 / -300 mm

+450 / -300 mm

+500 / -300 mm

+500 / -300 mm

(*) Capacity 15 tons or more, please contact us

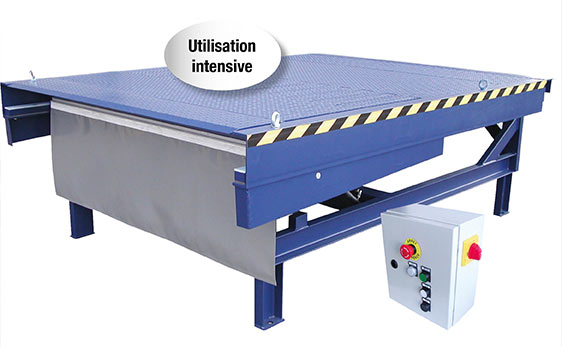

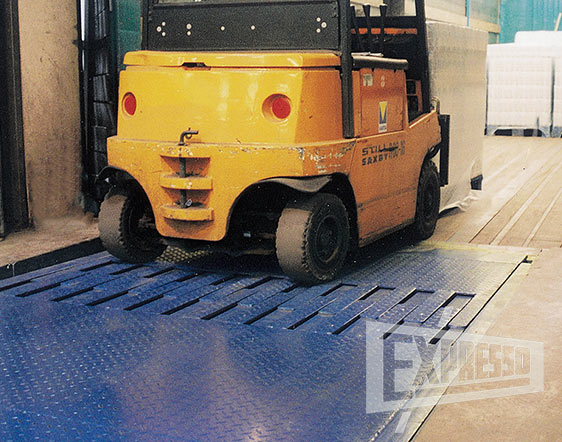

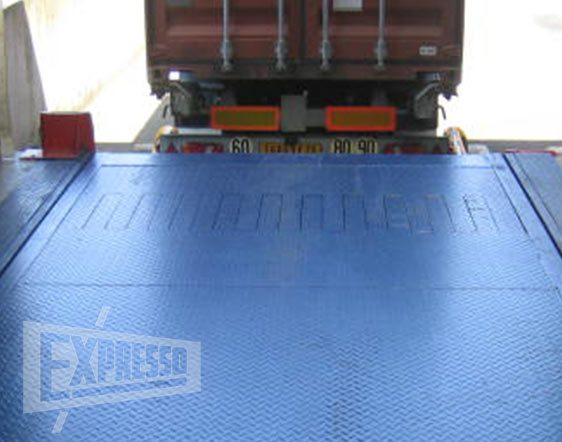

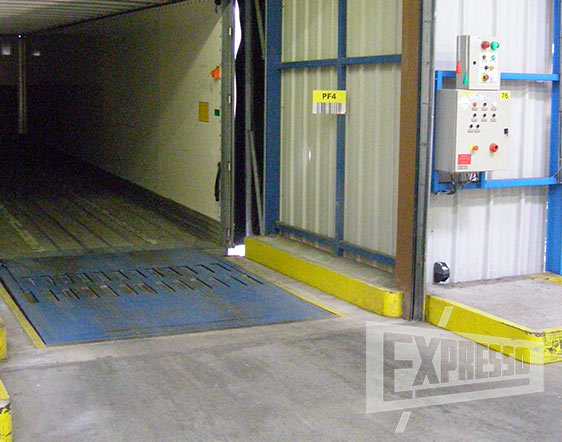

Telescopic comb lip dock leveler - Ref. STVP

Dynamic load capacity 6/9/12 tons

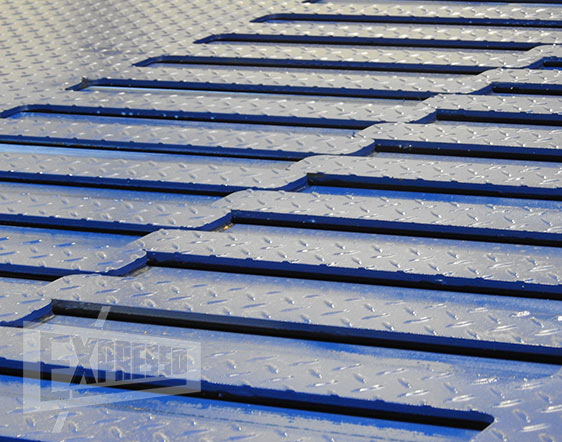

Patented dock leveler model designed for intensive use. Very high structural resistance to load and work intensity.

Improved working comfort for the operator : health preserved, reduction of spinal problems

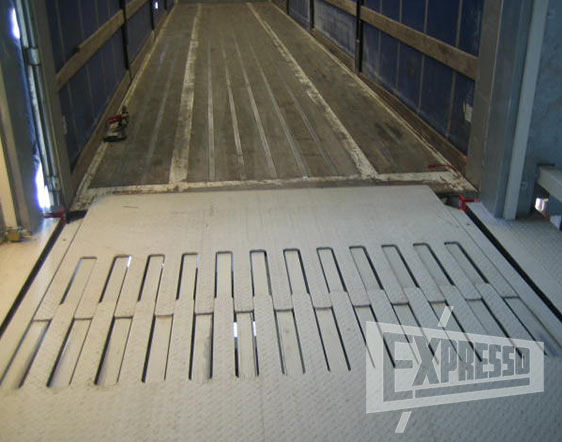

Goods proctection: No more repetitive shocks, reducing the risk of falling loads. Possibility to make slide the large volumes on the platform (surface without breaking)

Structural load capacity and work intensity much higher: The telescopic comb lip dock leveler STVP has almost double IPE reinforcements that on a standard telescopic leveler at both to the platform and to the lip.

Fast and very accurate adjustment of the lip on the floor of the trailer

Its extension (500, 800 or 1000 mm) allows to reach the floor very far

Construction:

Dynamic capacity: 6/9/12 tons (depending on model)
(For loads of 15 tonnes or more, please contact us)

Lip length 500, 800 or 1000 mm

Extremely robust construction giving exceptional resistance capacity

IPE platform reinforcements, flame cut hinges of lip , UPN frame

Side lip guidance and polyethylene coating for the slip

Hydraulic:

Hydraulic and electrical components used chosen for their reliability and longevity

Onboard hydraulic unit
- 1.1 KW motor power flow 5 l / min
- Supply 400 or 230 V TRI, 50 Hz + earth
- Control voltage 24 volt, Sequence valve

2 hydraulic cylinders for the platform and one for the lip

Safety:

Safety skirts on both sides in 4 mm sheet metal

Security strut for maintenance

Parachute valve centred between the 2 cylinders

Emergency stop with reset button

Our research department offers solutions for all possible configurations:

Existing pits for levelers

External chassis

Tunnel

Very intensive use

Heavy loads

Telescopic comb lip dock leveler reference

STVP 20/20

STVP 20/22

STVP 25/20

STVP 25/22

STVP 30/20

STVP 30/22

STVP 35/20

STVP 35/22

STVP 40/20

STVP 40/20

Capacity

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

6 / 9 / 12 tons*

Useful length

2500 mm

2500 mm

3000 mm

3000 mm

3500 mm

3500 mm

4000 mm

4000 mm

4500 mm

4500 mm

Rest position length

2000 mm

2000 mm

2500 mm

2500 mm

3000 mm

3000 mm

3500 mm

3500 mm

4000 mm

4000 mm

Platform width

2000 mm

2200 mm

2000 mm

2200 mm

2000 mm

2200 mm

2000 mm

2200 mm

2000 mm

2200 mm

Lip width

1840 mm

2040 / 2000 mm

1840 mm

2040 / 2000 mm

1840 mm

2040 / 2000 mm

1840 mm

2040 / 2000 mm

1840 mm

2040 / 2000 mm

Service range

+300 / -300 mm

+300 / -300 mm

+350 / -300

+350 / -300

+400 / -300

+400 / -300

+450 / -300

+450 / -300

+500 / -300

+500 / -300
