Swing lip dock leveler - Ref. STA
< Previous




Swing lip dock leveler - Capacity 6 / 9 / 12 tons

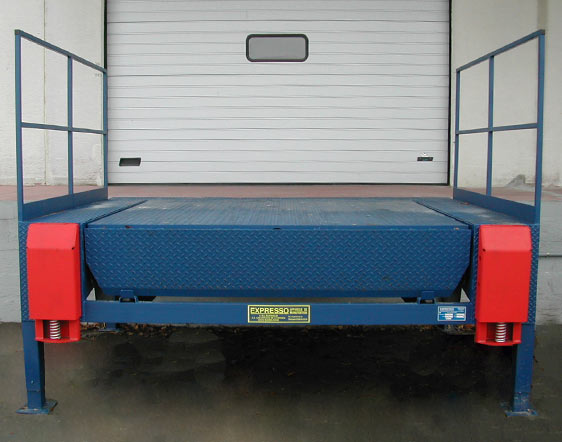

  Swing lip dock leveler - Ref. STA
   Dynamic load capacity 6/9/12 tons

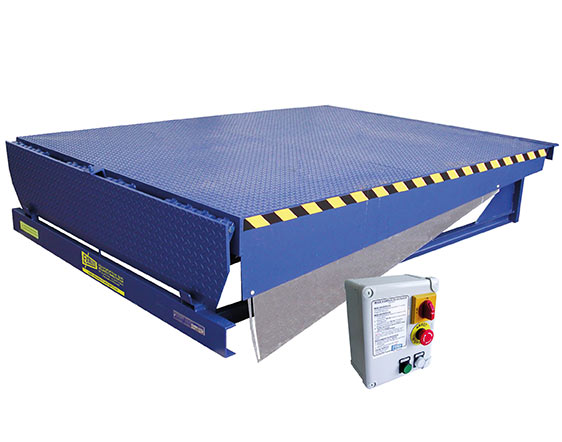

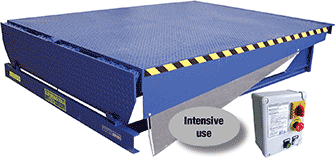

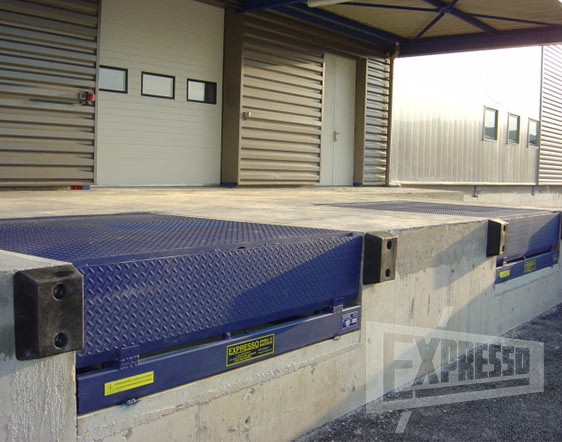

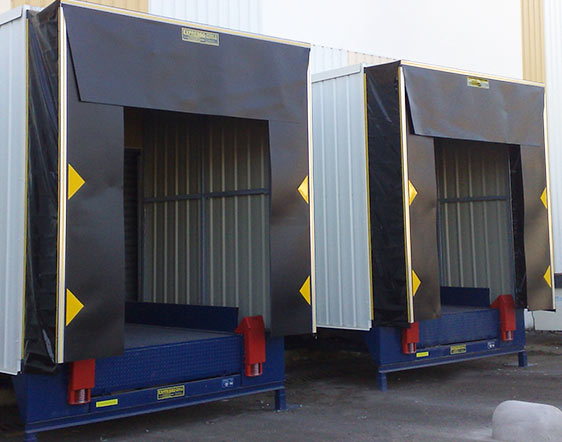

Standard dock leveler STA 6/20/20 for pit to create
Standard dock leveler STA 6/20/20 for pit to create

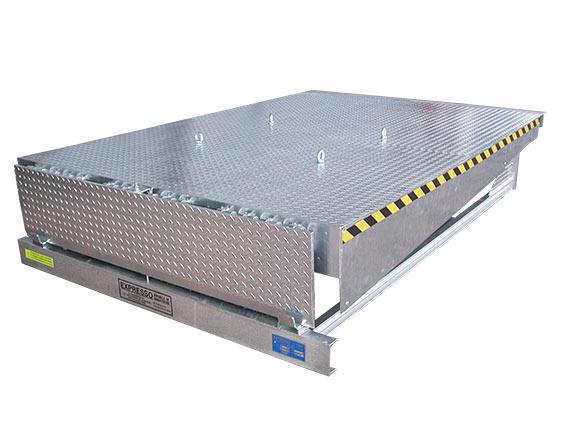

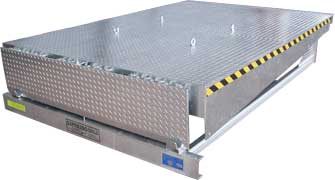

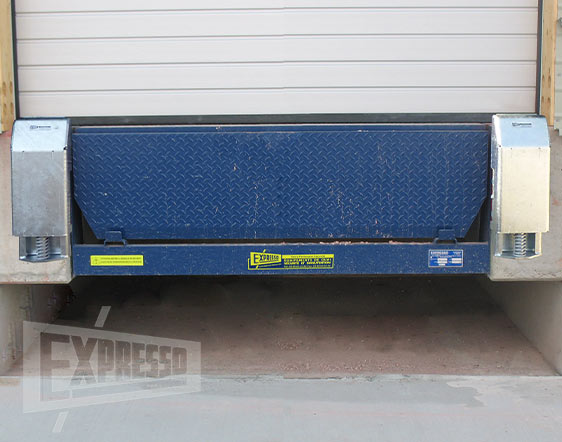

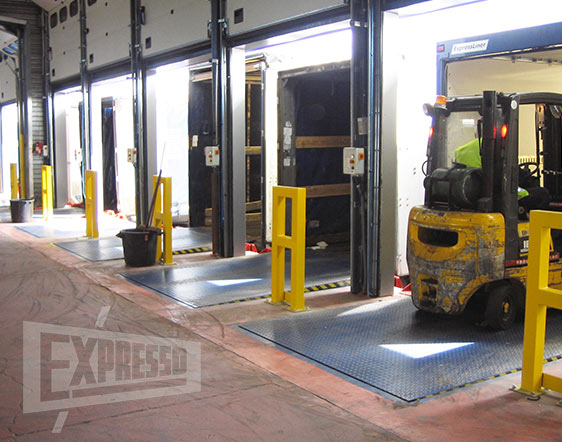

Galvanized dock leveler STA 6/20/20 for pit to create
Galvanized dock leveler STA 6/20/20 for pit to create


Intensive use / Safety and comfort of use /
Low maintenance cost

Construction :

  • Dynamic load capacity : 6/9/12 tons
  • Very robust construction
  • Flame cut hinges of lip thickness 30 mm H=150 mm
  • IPE platform reinforcements from 100 to 140 mm (depending on model)

Hydraulic :

  • Hydraulic and electrical components used chosen for their reliability and longevity
  • Onboard hydraulic unit
    - 1.1 KW motor power flow 5 l / min
    - Supply 400 or 230 V TRI, 50 Hz + earth
    - Control voltage 24 volt, Sequence valve
  • 2 hydraulic cylinders for the platform and one for the lip

Safety :

  • Fixed safety skirts on both sides
  • Mobile galvanized safety skirts on both sides
  • Security strut for maintenance
  • Emergency stop with reset button
  Our research department offers solutions for all possible configurations: Existing pits for levelers / Internal frame,
   Very intensive use / Heavy loads, ...
Swing lip dock leveler Swing lip dock leveler Swing lip dock leveler Galvanized dock leveler

  Swing lip dock leveler Ref. STA 20/20 STA 20/22 STA 25/20 STA 25/22 STA 30/20 STA 30/22 STA 35/20 STA 35/22
  Length in rest position (mm) 2 000 2 000 2 500 2 500 3 000 3 000 3 500 3 500
  Length (mm) 2 400 2 400 2 900 2 900 3 400 3 400 3 900 3 900
  Platform width (mm) 2 000 2 200 2 000 2 200 2 000 2 200 2 000 2 200
  Lip width (mm) 2 000 2 200 / 2 000 2 000 2 200 / 2 000 2 000 2 200 / 2 000 2 000 2 200 / 2 000
  Capacity (tons) 6 / 9 / 12 6 / 9 / 12 6 / 9 / 12 6 / 9 / 12 6 / 9 / 12 6 / 9 / 12 6 / 9 / 12 6 / 9 / 12
  Service range (mm) +300 / -300 +300 / -300 +350 / -300 +350 / -300 +400 / -300 +400 / -300 +450 / -300 +450 / -300

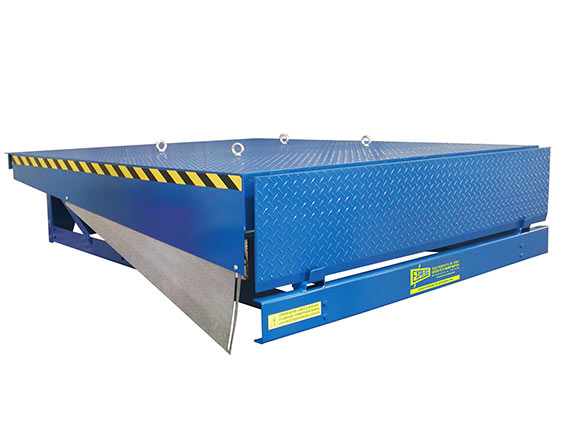

  Swing lip dock leveler - Ref. NILA - Capacity 6 tons
   Dynamic load capacity 6 tons

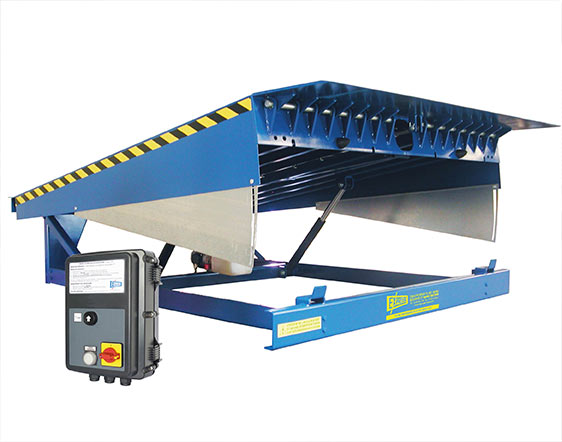

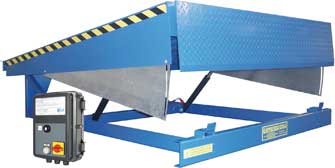

Swing lip dock leveler Expresso - Ref. NILA



Hydraulic :

  • Hydraulic and electrical components used chosen
    for their reliability and longevity
  • Onboard hydraulic unit
    - 1.1 KW motor power flow 5 l / min
    - Supply 400 or 230 V TRI, 50 Hz + earth
    - Control voltage 24 volt, Sequence valve
  • 2 hydraulic cylinders for the platform and one for
    the lip
Non intensive use
Dynamic capacity 6 tons

Construction :

  • Dynamic load capacity : 6 tons
  • Swing lip 400 mm thickness 12/14 mm
  • Robust and precise construction
  • Length 2850 mm
  • Length in rest position 2500 mm
  • Height in rest position 595 mm
  • Platform width 2000 mm
  • Lip length 400 mm
  • Lip width 2000 mm
  • Service range +350 / -300 mm
  • Checker plate platform thickness 6/8 mm,
    folded sheet reinforcements thickness 4 mm
  • Hinges of lip in hollow blank 50 x 10 mm.
  • Hinges of lip "Water drop" thickness 12 mm


Safety :

  • Fixed safety skirts on both sides
  • Mobile galvanized safety skirts on both sides
  • Security strut for maintenance
See also   Pits for levelers
