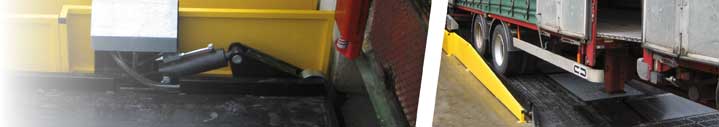

Hydraulic truck levelers

The hydraulic truck leveler used to raise or lower the back of trucks and adjust the height and the slope of the trailer floor. No need civil engineering.

Correct the natural inclination of trailers that often adding to the slope of the loading dock, cause inside the trailer an very dangerous slope to handlers and goods

Reduced risk of collision between the trailer and the cladding panels in case of too high slope

Avoid the flow of rain water inside the warehouse through runoff on the roof of the truck by reversing the slope. Thus reducing the risk of slips and falls.

Readjust the flatness of the floor during transhipment, depending on the eventual collapse of the dampers

Allowing easy removal of the first pallets when you can not set up the leveler in the case of a lower vehicle.

No civil engineering required

Power 1.5 Kw

Fixed security tapered lip

Power 380V / 50Hz + Earth Tri

Supply : 380 V/Tri 50Hz + Terre, Power supply : 1,5 Kw,

24V control voltage

Emergency stop in all positions with reset button

Lockable disconnect switch

Parachute system for safety in the event of hose rupture

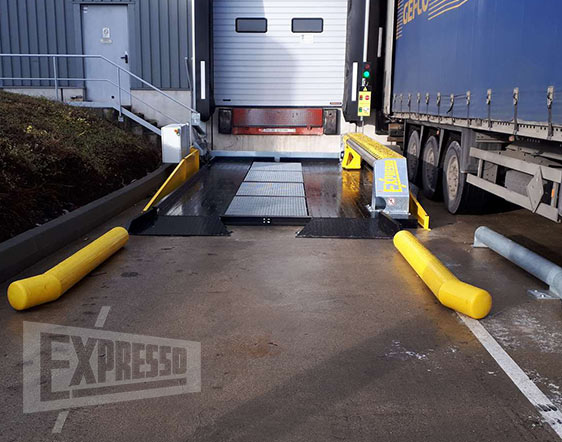

The combination of a hydraulic truck leveler and a truck blocking system (Stop Trucks) allows the truck to be levelled and perfectly immobilised on the dock.

Correct the natural inclination of trailers that often adding to the slope of the loading dock, cause inside the trailer an very dangerous slope to handlers and goods

Reduced risk of collision between the trailer and the cladding panels in case of too high slope

Safety: Perfect truck immobilisation by Stop Trucks during loading and unloading operations

Channelling of the truck for docking in line with the loading dock

Avoid the flow of rain water inside the warehouse through runoff on the roof of the truck by reversing the slope. Thus reducing the risk of slips and falls.

Readjust the flatness of the floor during transhipment, depending on the eventual collapse of the dampers

Capacity 20 tons

Hydraulic truck leveler with widening for Stop Trucks

Power 1.5 Kw

Fixed side skirts

Power supply 380V/Tri 50Hz+Earth

1 pushbutton "Up/Down" control box

24V control voltage

Emergency stop in any position and reset button

Lockable switch-disconnector

Parachute system for safety in the event of hose rupture
