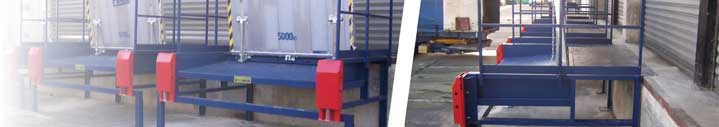

Loading ramp on external frame
Standard loading frame
Capacity 5000 kg
External frames are well suited to the rented premises. No space loss in the warehouse.
Options and accessories:
8862 loading ramp on external frame with tailgate passage, rear table and sliding bumpers
Loading ramp with external frame with tailback reserve and anti-squash refuge area
Capacity 5000 kg
Les châssis extérieurs avec zone refuge anti-écrasement permettent de réduire le risque d'écrasement de personnes entre le châssis et la remorque du camion.
Product complies with standard NF EN ISO 13854 and the INRS / CRAM technical guide ED6059, which sets out the recommendations for good practice in the profession.
Options and accessories:
Reference :
Loading ramp
on external frame
Loading ramp
on external frame
Frame
depth
1000 mm
1000 mm
1000 mm
1150 mm
1150 mm
1150 mm
1350 mm
1350 mm
1350 mm
1600 mm
1600 mm
1600 mm
1850 mm
1850 mm
1850 mm
Loading ramp
length
1150 mm
1150 mm
1150 mm
1300 mm
1300 mm
1300 mm
1500 mm
1500 mm
1500 mm
1750 mm
1750 mm
1750 mm
2000 mm
2000 mm
2000 mm
Loading ramp
width
1500 mm
1750 mm
2000 mm
1500 mm
1750 mm
2000 mm
1500 mm
1750 mm
2000 mm
1500 mm
1750 mm
2000 mm
1500 mm
1750 mm
2000 mm
Max.
service range
+/- 180 mm
+/- 180 mm
+/- 180 mm
+/- 200 mm
+/- 200 mm
+/- 200 mm
+/- 250 mm
+/- 250 mm
+/- 250 mm
+/- 280 mm
+/- 280 mm
+/- 280 mm
+/- 300 mm
+/- 300 mm
+/- 300 mm
Weight
57 kg
66 kg
75 kg
63 kg
73 kg
83 kg
71 kg
82 kg
94 kg
81 kg
94 kg
108 kg
91 kg
106 kg
120 kg
