Dock equipment > Dock bumpers - Protection of buildings and vehicles > Loading dock bumpers - Laminated dock bumpers
Loading dock bumpers - Laminated dock bumpers
< Previous




Loading dock bumpers - Laminated dock bumpers

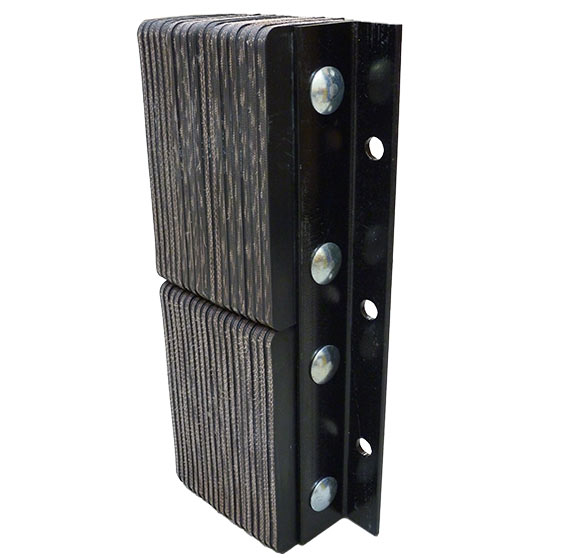

  Laminated rubber dock bumper - Metal bracket to bolt or weld - Ref. BULA1




Laminated rubber dock bumper BULA1


  • Very strong construction
  • Metal bracket to bolt or weld
  • Delivery by pair (special dowels included)
  • The rubber pads can be replaced after wear
  • Standard finish : Epoxy powder coating

Options :

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)
  • Metal cover (refer to BULA11)

Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA1 500 500 270 165 100 33
  Laminated rubber dock bumper - Metal bracket to bolt and weld - Ref. BULA2




Laminated rubber dock bumper BULA2



The metal base of the dock bumper is designed to be welded to a side bracket (interior side) and dowelled in the dock (exterior side).

  • Very strong construction
  • Metal bracket to bolt and weld
  • Delivery by pair (special dowels included)
  • The rubber pads can be replaced after wear
  • Standard finish : Epoxy powder coating

    Options :

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)
  • Metal cover (refer to Butoirs BULA21)


Quotation request (Click on the reference below)
 Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA2 450 400 250 180 108 39
  Laminated rubber dock bumper - Metal bracket to weld - Ref. BULA3




Laminated rubber dock bumper BULA3
  • Very strong construction
  • Metal bracket to weld
  • Delivery by pair
  • The rubber pads can be replaced after wear
  • Standard finish : Epoxy powder coating

    Options :

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)
  • Metal cover (refer to bumpers BULA31)


Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA3 400 400 230 196 108 34
  Laminated rubber dock bumper - Metal bracket to weld - Réf. BULA4




Laminated rubber dock bumper BULA4
  • Very strong construction
  • Metal bracket to weld
  • Delivery by pair
  • The rubber pads can be replaced after wear
  • Standard finish : Epoxy powder coating

    Options :

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)
  • Metal cover (refer to bumpers BULA41)

Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA4 500 500 230 180 108 44
  Laminated rubber dock bumper with metal cover - Metal bracket to bolt or weld - Ref. BULA11




Laminated rubber dock bumper with metal cover BULA11

    • Very strong construction
    • Metal cover
    • Metal bracket to bolt or weld
    • Delivery by pair (special dowels included)
    • No maintenance
    • Standard finish : Epoxy powder coating

      Options :

    • Dock bumper riser to bolt or weld
      (to fixed on the edge above the dock)
       H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
    • Standard dock Cap 280 x 200 mm (CABU8)


Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA11 553 500 270 200 112 67
  Laminated rubber dock bumper with metal cover - Metal bracket to bolt and weld - Ref. BULA21




Laminated rubber dock bumper with metal cover BULA21
The metal base of the dock bumper is designed to be welded to a side bracket (interior side) and dowelled in the dock (exterior side).

  • Very strong construction
  • Metal cover
  • Metal bracket to bolt and weld
  • Delivery by pair (special dowels included)
  • No maintenance
  • Standard finish : Epoxy powder coating

    Options :

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)


Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA21 450 400 250 200 120 64
  Laminated rubber dock bumper with metal cover - Metal bracket to weld - Ref. BULA31




Laminated rubber dock bumper with metal cover BULA31
  • Very strong construction
  • Metal cover
  • Metal bracket to weld
  • Delivery by pair
  • No maintenance
  • Standard finish : Epoxy powder coating

    Options :

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)

Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA31 450 400 230 178 120 58
  Laminated rubber dock bumper with metal cover - Metal bracket to weld - Ref. BULA41




Laminated rubber dock bumper with metal cover BULA41
  • Very strong construction
  • Metal cover
  • Metal bracket to weld
  • Delivery by pair
  • No maintenance
  • Standard finish : Epoxy powder coating

    OPTIONS

  • Dock bumper riser to bolt or weld
    (to fixed on the edge above the dock)
     H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and  H=250 (REBU29) with a depth of 200 mm for all models
  • Standard dock Cap 280 x 200 mm (CABU8)

Quotation request (Click on the reference below)
  Ref. of bumpers Overall height
(mm)		 Height
(mm)		 Overall width
(mm)		 Width
(mm)		 Depth
(mm)		 Weight (by pair)
(kg)
  BULA41 553 500 230 200 120 78
See also   Sliding dock bumpers
