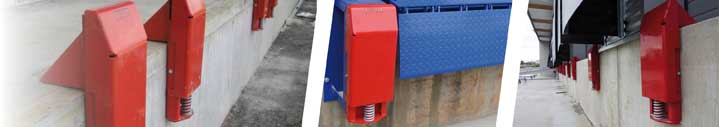

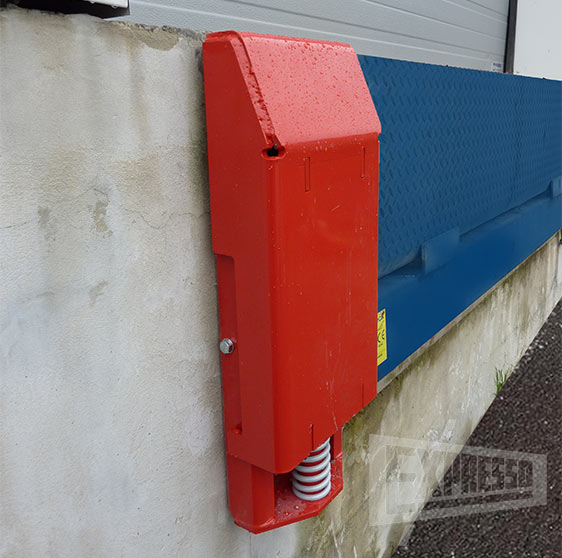

One standard bumper and one dock bumper with above dock fitment to ensure to stop multi height suspension trailers
|
These bumpers move up and down to match the travel of the vehicles suspension when it is in contact with the bumper, this dock bumper is designed for intensive use
- Very strong construction
- Fixed base that can be installed on all types of loading docks (special dowels included)
- Mobile part equipped with rubber buffer pad (70 shore)
- Vertical range + or - 100 mm
- Very strong metal cover
- No maintenance, the iInside rubber pad is never subjected to any damage
- Protected pressure spring, oversized, insensitive to climatic variations
- Standard finish : Epoxy powder coating
OPTIONS
- Above dock bumper fitment to bolt or weld (to fixed on the edge above the dock) H=100 mm (REBU4), H=150 mm (REBU13), H=200 mm (REBU17) and H=250 (REBU29) with a depth of 200 mm for all models
- Standard dock cap 280 x 200 mm (CABU8)
|
