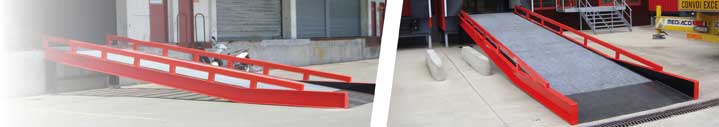

Loading yard ramps - Stationary yard ramp
Stationary loading yard ramp - Access ramp to loading dock
Capacity : 6 and 10 tons
A fixed ramp is an ideal solution when:
- You can't afford to tie up the dock for several days
- You are renting and do not wish to invest
- You may have to change the location of this ramp
or metal cap to be placed on the edge of loading dock
- Guardrail (height 1000 mm)
- Finish: hot-dip galvanised

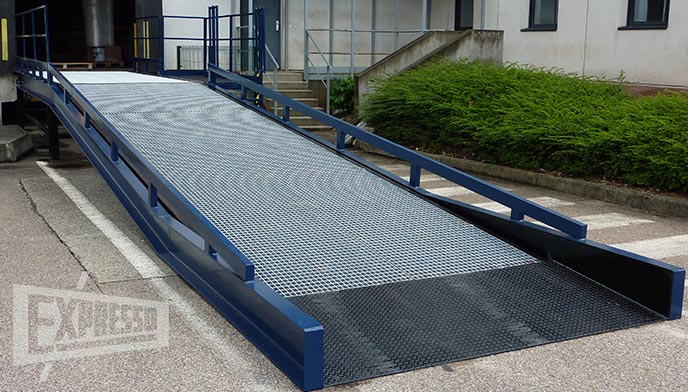

Stationary loading yard ramp with guardrails
Galvanised stationary loading yard ramp with guardrails
Capacity
6000 kg
10000 kg
6000 kg
10000 kg
6000 kg
10000 kg
Length of slope
8000 mm
8000 mm
10000 mm
10000 mm
12000 mm
12000 mm
Overall width
2400 mm
2400 mm
2400 mm
2400 mm
2400 mm
2400 mm
Useful width
2200 mm
2200 mm
2200 mm
2200 mm
2200 mm
2200 mm
Service range
from 800 to 900 mm
from 800 to 900 mm
from 1000 to 1100 mm
from 1000 to 1100 mm
from 1200 to 1300 mm
from 1200 to 1300 mm
Stationary yard ramp for loading dock with an horizontal platform

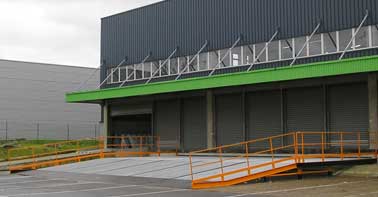

Leveling ramps for LCV
to ensure that LCVs are level with the loading dock
An LCV levelling ramp is used to bring light vehicles up to dock level for loading and unloading.
On truck loading docks, light commercial vehicles (LCVs) cannot be unloaded because they are too low. One solution is to install a levelling ramp with a horizontal section that allows the vehicles to be placed flat at the required height. When the height to be made up is less than 350 mm, extensions can also be used, but these do not allow the vehicles to be positioned flat.
- Guard rail (height 1000 mm)
