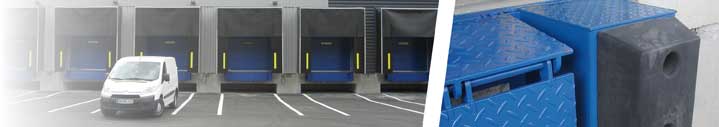

Mechanical edge-of-dock - Expresso mini-leveler


	Steel mechanical edge-of-dock mini-leveler - Ref. POLA / PSE Capacity 6000 kg (POLA) - 9000 kg (PSE)

Standard mechanical mini-leveler with rubber bumpers

Ponts de liaison mécaniques - Mini niveleurs Expresso

Mini-leveler ramp with sliding dock bumpers and dock cap

Very simple and robust mechanism
This mini-leveler is maintenance free!

Easy to use : no setting up effort, this loading ramp automatically returns to its rest position at the start of the truck
Nearly flat running surface well suited to electric pallet trucks and stackers
Rubber bumpers ref. BUCC13
Operating lever with its support and retaining chain
Easy installation : in new construction or under renovation
Economical : no engineering, no maintenance
Multi-purpose : adapts to the positive and negative range

OPTIONS :
Sliding dock bumpers BUMO115 or other bumpers
Standard dock cap or angle edge dock cap

Quotation request (Click on the reference below)
Mini-leveler ref	Capacity (kg)	Width (mm)	Overall width (mm)	Rest position length (mm)	Total length of the extended lip (mm)	Service range (mm)
POLA28211	6000	2100	2850	380	700	+/- 100
PSE 26/18	9000	1830	2600	380	705	+/- 130
PSE 26/20	9000	1980	2600	380	705	+/- 130


	Electrified mini-leveler ramp Capacity 6000 kg

Lifting cylinder, single acting Ø45 mm
+ Lip cylinder, single acting Ø20 mm

This mini-leveler is easy to manoeuvre thanks to a single push button on the command box.

Nearly flat running surface well suited to electric pallet trucks and stackers
Rubber bumpers ref. BUCC13
Easy installation : in new construction or under renovation
Multi-purpose : adapts to the positive and negative range
Hydraulic power on separate bracket with retention tray
Lifting cylinder, single acting
rod Ø45 mm
Lip cylinder, single acting
rod Ø20 mm
Engine power 0.75 KW
Supply 400 or 230 V TRI, 50 Hz + Earth
Solenoid valve 24 V and sequence valve

OPTIONS :
Sliding dock bumpers BUMO1115 or other bumpers
Standard dock cap or angle edge dock cap
Cover for fixing the hydraulic central to the outside

Control box ABS, IP55 protection

Engine fuse protection
Control circuit : 24 V
Control circuit fuse protection
Lockable rotary disconnect switch, light indicator "Power on" in front of the box
Pressure maintained push button with reset
Control box equipped for servo control (door or dock, ...)

Quotation request (Click on the reference below)
Electrified Mini-leveler ref	Capacity (kg)	Width (mm)	Overall width	Rest position length (mm)	Total length of the extended lip (mm)	Service range (mm)
POLA28211	6000	2100	Depending on bumpers type	380	700	+/- 100
POAC26181	9000	1830	Depending on bumpers type	380	705	+/- 100
POAC26201	9000	1980	Depending on bumpers type	380	705	+/- 100


	Aluminium mechanical edge-of-dock mini-leveler - Ref. PSE Capacity 6000 kg or 9000 kg

OPTIONS :

Very simple and robust mechanism - Maintenance free

Easy to use : no setting up effort, this loading ramp automatically returns to its rest position at the start of the truck
Nearly flat running surface well suited to electric pallet trucks and stackers
Rubber bumpers ref. BUCC13
Operating lever with its support and retaining chain
Easy installation : in new construction or under renovation
Economical : no engineering, no maintenance
Multi-purpose : adapts to the positive and negative range

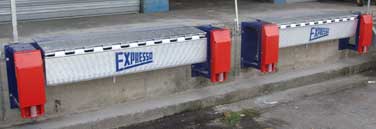

Aluminium mechanical edge-of-dock mini-leveler

Quotation request (Click on the reference below)
Mini-leveler ref	Capacity (kg)	Width (mm)	Overall width (mm)	Rest position length (mm)	Total length of the extended lip (mm)	Service range (mm)
PSE 27/20	6000	2000	2750	500	700	+/- 130
PSE 30/22	6000	2250	3000	500	700	+/- 130
