Sliding drawbridge leveler on rail - Lateral displacement

< Previous

Sliding drawbridge leveler on rail - Lateral displacement


	Sliding drawbridge leveler on rail - Ref. 8861 - Stationary drawbridge leveler - Ref. 8862 Capacity 5000 kg

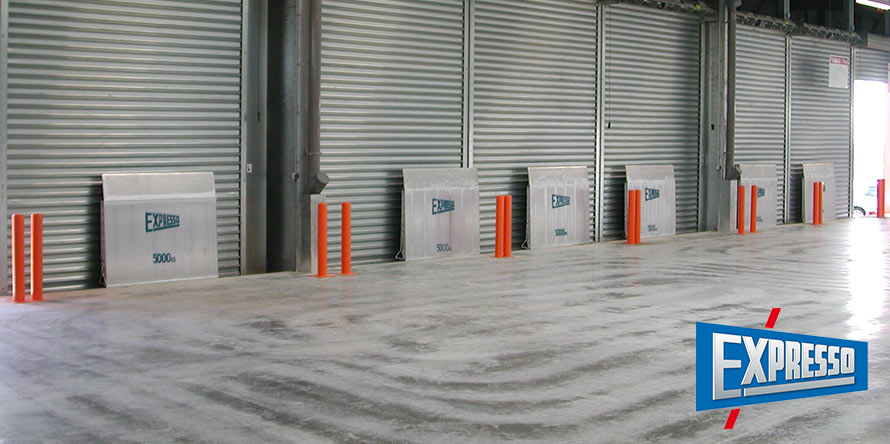

The lateral mobility to ramps allows greater flexibility for the trucks to dock
Double spring compensation

Capacity 5000 kg
(up to 6000 kg optional)
Robust construction in aluminum profile
2 compensating springs for effortless and easy handling
Positiv and negativ service range
Auto lock in the vertical position
Auto Unlock : just a simple pressure of the hand unlocks the ramp
Chain or lifting lever (depending on model)
Fixing in a steel rail . This rail can be welded to an existing iron or directly sealed during the casting of the concrete slab.

The model 8862 is fixed :
It is fixed in a rail, but is not movable laterally

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
8861/1115	5000	1150	1500	+/- 180	57
8861/1117	5000	1150	1750	+/- 180	66
8861/1120	5000	1150	2000	+/- 180	75
8861/1315	5000	1300	1500	+/- 200	63
8861/1317	5000	1300	1750	+/- 200	73
8861/1320	5000	1300	2000	+/- 200	83
8861/1515	5000	1500	1500	+/- 250	71
8861/1517	5000	1500	1750	+/- 250	82
8861/1520	5000	1500	2000	+/- 250	94
8861/1715	5000	1750	1500	+/- 280	81
8861/1717	5000	1750	1750	+/- 280	94
8861/1720	5000	1750	2000	+/- 280	108
8861/2015	5000	2000	1500	+/- 300	91
8861/2017	5000	2000	1750	+/- 300	106
8861/2020	5000	2000	2000	+/- 300	120


	Sliding drawbridge leveler on rail - Ref. 8860 Capacity 5000 kg

Long metal frame : a good solution in the case of renovation or upgrading of an existing loading dock

Lateral mobility -
Flexibility for the trucks to dock

Capacity up to 5000 kg
Robust construction in aluminum profile
Lateral displacement effortlessly
Positiv and negativ service range
Compensating springs for effortless and easy handling on some models
Auto lock in the vertical position
Auto Unlock : just a simple pressure of the hand unlocks the ramp
Chain or lifting lever (depending on model)
Fixing in a steel rail . This rail can be welded to an existing iron or directly sealed during the casting of the concrete slab.

On the compensated models the position of the spring depends on the length of the ramp

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)	Compensating spring
8860/6510	5000	650	1000	+/- 120	34	NO
8860/6512	5000	650	1250	+/- 120	40	NO
8860/6515	5000	650	1500	+/- 120	46	NO
8860/6517	5000	650	1750	+/- 120	52	NO
8860/6520	5000	650	2000	+/- 120	58	NO
8860/6520	5000	650	2000	+/- 120	61	YES
8860/7515	5000	750	1500	+/- 135	50	NO
8860/7517	5000	750	1750	+/- 135	57	NO
8860/7520	5000	750	2000	+/- 135	63	NO
8860/7520	5000	750	2000	+/- 135	66	YES
8860/9515	5000	950	1500	+/- 150	58	NO
8860/9517	5000	950	1750	+/- 150	66	NO
8860/9517	5000	950	1750	+/- 150	66	YES
8860/9520	5000	950	2000	+/- 150	74	YES


	Drawbridge leveler on rail - Ref. PAR Capacity 4000 kg

Maintenance free aluminium loading ramp
Possible lowest lateral displacement)

Capacity 4000 kg
Robust construction in aluminum profile
Automatic locking bolt in the vertical position, unlocking is done manually.
Possible lowest lateral displacement
to adjust to a more or less precise location of the truck
Maintenance free
OPTIONS :
- Dock cap for better fixation, especially when the nose of dock is damaged.
- Bumper frame (see the left photo)

Quotation request (Click on the reference below)
Ref.	Capacity (kg)	Length (mm)	Width (mm)	Service range (mm)	Weight (kg)
PAR 6515	4000	650	1500	+/- 85	34
PAR 6517	4000	650	1750	+/- 85	40
PAR 6520	4000	650	2000	+/- 85	46
PAR 7515	4000	750	1500	+/- 100	38
PAR 7517	4000	750	1750	+/- 100	45
PAR 7520	4000	750	2000	+/- 100	51
PAR 9515	4000	950	1500	+/- 120	46
PAR 9517	4000	950	1750	+/- 120	54
PAR 9520	4000	950	2000	+/- 120	62

Other dimensions on request
