Home > Dock equipment - Transhipment equipment  > Truck wheel risers - Dock wheel risers >  Truck wheel risers

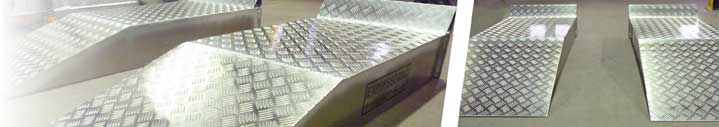

Truck wheel risers Expresso
Truck wheel risers Expresso
Truck wheel risers Expresso

Truck wheel risers

Truck wheel risers - Aluminium wheel risers - Ref. RH ALU

Capacity 10000 kg per wheel riser

Aluminium wheel risers Expresso
Request a quote

Our truck wheel risers (sold in pairs) are used when the trailer is too low or when the slope is too steep for handling equipment.

  • Capacity 10 tons per wheel riser
  • Rolling surface made of anti-skid aluminum sheet
  • Standard rear stop (H=100 mm)
    • Options:
    - Anchoring brackets (x6) with Ø18 dowels to be specified when ordering

    - Removable drawbar with wheels to be specified when ordering

    - Moving wheel with screws
    Wheel riser with removable drawbar with wheels
    Wheel riser with removable drawbar with wheels
    Wheel riser to use with removable drawbar with wheels
    Wheel riser to use with removable drawbar with wheels
    Wheel riser with removable drawbar with wheels
    Wheel riser with removable drawbar with wheels

    Aluminium wheel riser reference
    REAL 15/400
    REAL 20/400
    REAL 25/400
    REAL 30/400

    Capacity
    2 x 10 tons
    2 x 10 tons
    2 x 10 tons
    2 x 10 tons

    Length x
    width
    1560 x 400 mm
    1560 x 400 mm
    1560 x 400 mm
    1560 x 400 mm

    Horizontal part length
    1070 mm
    910 mm
    755 mm
    600 mm

    Slope
    510 mm
    680 mm
    835 mm
    1000 mm

    Height
    150 mm
    200 mm
    250 mm
    300 mm

    Weight
    2 x 23 kg
    2 x 26 kg
    2 x 29 kg
    2 x 32 kg

    Truck wheel risers - Steel wheel risers - Ref. RH STEEL

    Capacity 10000 kg per wheel riser

    Steel wheel risers Expresso
    Request a quote

    Expresso steel wheel risers (sold in pairs) are used when the truck is too low or when the slope is too steep for handling equipment.

  • Capacity 10 tons per wheel riser
  • Rolling surface made of anti-skid checker plate
  • Standard rear stop (H=100 mm)
    • Options:
    - Anchoring brackets (x6) with Ø18 dowels to be specified when ordering

    - Removable drawbar with wheels to be specified when ordering

    - Moving wheel with screws
    Wheel riser with removable drawbar with wheels
    Wheel riser with removable drawbar with wheels
    Wheel riser with removable drawbar with wheels

    Steel wheel riser reference
    REAC 15/400
    REAC 20/400
    REAC 25/400
    REAC 30/400

    Capacity
    2 x 10 tons
    2 x 10 tons
    2 x 10 tons
    2 x 10 tons

    Length x
    width
    1560 x 400 mm
    1560 x 400 mm
    1560 x 400 mm
    1560 x 400 mm

    Horizontal part length
    1070 mm
    910 mm
    755 mm
    600 mm

    Slope
    510 mm
    680 mm
    835 mm
    1000 mm

    Height
    150 mm
    200 mm
    250 mm
    300 mm

    Weight
    2 x 23 kg
    2 x 26 kg
    2 x 29 kg
    2 x 32 kg

    Truck wheel risers - Wheel risers with retractable castors - Ref. RHM

    Capacity 10000 kg per wheel riser

    Wheel risers with retractable castors Expresso
    Request a quote

    Easy positioning of each wheel riser through a removable tiller on wheelsand and retractable wheels in the front of the wheel riser

  • Rolling surface made of anti-skid checker plate
  • Retractable wheels at the front
  • Tiller on wheels
  • Standard rear stop (H=100 mm)
    • Wheel risers with retractable castors
    Wheel risers with retractable castors Expresso
    Wheel risers with retractable castors Expresso
    Wheel risers with retractable castors reference
    RHM 20
    RHM 30

    Capacity
    2 x 10 tons
    2 x 10 tons

    Height
    200 mm
    300 mm

    Length
    4800 mm
    4800 mm

    Width
    600 mm
    600 mm

    Horizontal part length
    2600 mm
    2600 mm

    Slope
    2200 mm
    2200 mm

    Truck wheel risers - Steel wheel riser with forklift pockets - Ref. REAC30

    Capacity 10000 kg per wheel riser

    Truck wheel risers - Steel wheel riser with forklift pockets Expresso
    Request a quote

    Perfectly equilibrated, these wheel risers are designed to be manipulated with a forklift truck through integrated forklift pockets in the structure of the wheel riser

  • Forklift pockets: Width 190 mm, height 70 mm
  • Rolling surface made of anti-skid checker plate
  • Standard rear stop (H=100 mm)
    • Steel wheel riser with forklift pockets Expresso
    Steel wheel riser with forklift pockets Expresso
    Steel wheel riser with forklift pockets reference
    REAC30

    Capacity
    2 x 10 tons

    Height
    300 mm

    Length
    4800 mm

    Width
    600 mm

    Horizontal part length
    2600 mm

    Slope
    2200 mm
    Made-to-measure dimensions (please contact us)
