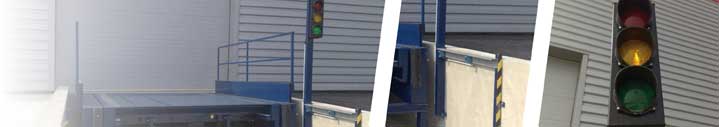

Truck detection kit - Dock guiding for trucks

Kit d'approche de quai Expresso - Système d'aide à l'accostage

The approach kit indicates to the driver the progress of his docking, thus avoiding collisions that could damage the trailer, the nose of the dock or the transhipment equipment.

Truck detection kit - Dock guiding for trucks

ref. KISP0110

The approach and docking assistance kit guides drivers to avoid violent docking that could damage their vehicle and dock equipment.

Particularly useful where a lifting table is used, this approach kit for trucks signals the driver when the truck is approaching the dock or table, thus avoiding too abrupt an approach to the dock, which could damage the table or the nose of the dock and, of course, the truck trailer.

The docking assistance kit includes:
  • 1 electrical box
  • 2 optical detectors with mounting posts
  • 1 LED traffic lightto be fixed to the rear post of the detector (here fixed to the dock wall)
  • 2 optical detectors with mounting posts
  • Option: Door detector and/or stored leveller detector
  • 400 or 230 V power supply (please specify when ordering).
  • Marking kit with LED solar panels

    Ref. KIGR001

    The solar-powered LED light stud with twilight triggering used in this kit is environmentally-friendly and maintenance-free. It can be used to mark out a loading bay to make it easier for lorries to dock at night or in poor visibility conditions, without the need for coring or trenching.

  • 2 very powerful FLASH LEDs
  • 1 reflector on the front
  • 1 rear reflector
  • 1 pot of Sikadur® for fixing the studs to the floor
  • Each pad is recharged during the day by the solar cell, providing 18 hours of operation.
  • Width 102 x Length 82 x Thickness 20 mm
  • Automatic ignitionfor a luminous intensity of less than 200 LUX
  • IP67 moulded waterproof case
  • 2 batteries Ni-Mh
  • Installation and positioning:
  • 4 light points with twilight triggering
    - 2 white FLASH LEDs for the driver's side
    - 2 Blue FLASH LEDs for the passenger side
