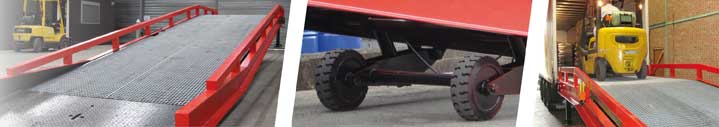

Hydraulic ramps - Yard ramps

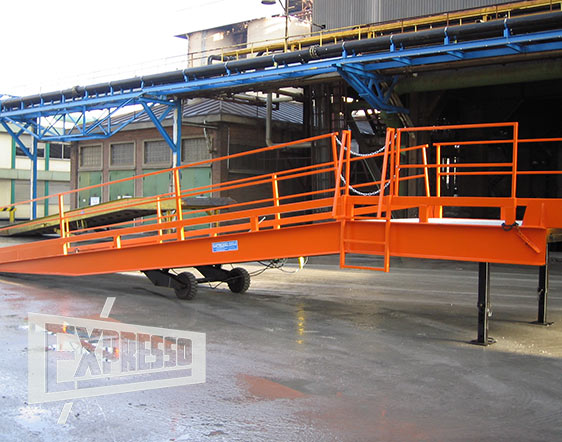

Hydraulic yard ramp (Buying or renting a ramp)
Capacity 6 and 10 tons - Length 12 or 16 m
Gain in flexibility with the Expresso hydraulic ramp! Our mobile ramps enable you to save on labour and civil engineering costs, speed up loading rates and make loading stations more mobile.
The forklift trucks access the inside of the trailer, containers or wagons directly via the mobile ramp, and carry out the following operations loading or unloading without breaking the load, in optimum time. The Expresso mobile loading yard ramp can be adapted to all vehicles thanks to its hydraulic system (hand pump or electrification optional).

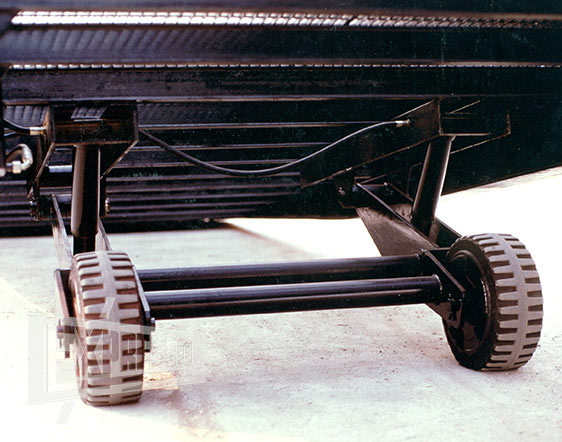

Wheels with solid filled tires
Tidy towing bar
Galvanized serrated grating Hand pump
Adjustable standing legs stowage chains
Towing bar
Guardrail over the side crash barrier
Options for hydraulic ramps:
- Hydraulic power pack
- Electric box
- Control box
- Power supply 220/380 V TRI 50HZ + Earth
Capacity
6 000 kg
10 000 kg
6 000 kg
10 000 kg
Overall length
12 000 mm
12 000 mm
16 000 mm
16 000 mm
Horizontal part length
2 500 mm
2 500 mm
2 500 mm
2 500 mm
Slope length
9 100 mm
9 100 mm
13 040 mm
13 040 mm
Minimal height
950 mm
950 mm
950 mm
950 mm
Overall width
2 400 mm
2 400 mm
2 400 mm
2 400 mm
Useful width
2 200 mm
2 200 mm
2 200 mm
2 200 mm
Max. lift height
1 750 mm
1 750 mm
1 750 mm
1 750 mm
Hydraulic yard ramp with enlarged horizontal part
Capacity 6 and 10 tons - Length 12 or 16 m
Through its horizontal broad part (with its sliding loading ramps), This mobile yard ramp allows to load simultaneously several trucks or wagons to the front and on the sides.
This mobile yard ramp has a widened bearing of 3 m with 1 or 2 sliding drawbridge leveler on each side of the ramp, which allow to load simultaneously several trucks and/or wagons.
Options and accessories:
1 or 2 ramps can be installed on the left and right sides of the horizontal part.
Lateral aluminium loading ramps - type PAR
Guardrails overcoming side crash barriers
Orientable forklift pocket
Capacity
6 000 kg
10 000 kg
6 000 kg
10 000 kg
Overall length
12 000 mm
12 000 mm
16 000 mm
16 000 mm
Horizontal part length
2 500 mm
2 500 mm
2 500 mm
2 500 mm
Slope length
9 100 mm
9 100 mm
13 040 mm
13 040 mm
Minimal height
950 mm
950 mm
950 mm
950 mm
Overall width
3 000 mm
3 000 mm
3 000 mm
3 000 mm
Useful width
2 200 mm
2 200 mm
2 200 mm
2 200 mm
Max. lift height
1 750 mm
1 750 mm
1 750 mm
1 750 mm
