Stationary drawbridge levelers with monobloc frame - Ref 8860
Stationary drawbridge levelers with monobloc frame - Ref 8860
Stationary drawbridge levelers with monobloc frame - Ref 8860

Stationary drawbridge levelers with monobloc frame - Ref 8860

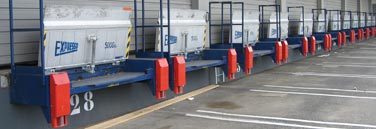

Stationary 8860 drawbridge leveler on monobloc frame and sliding dock bumpers

Anti-crushing refuge area - Capacity 5000 kg

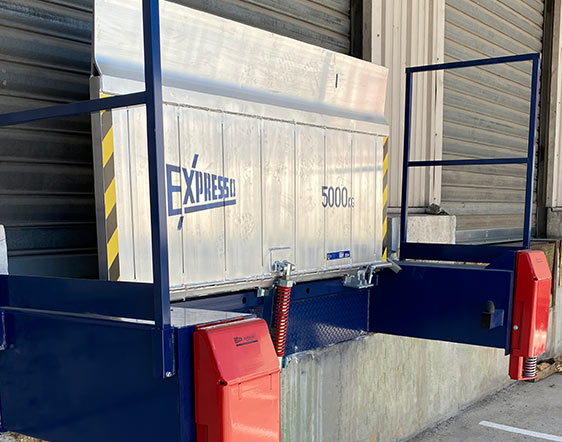

Stationary 8860 drawbridge leveler
Stationary 8860 drawbridge leveler
Request a quote

Aluminium drawbridge leveler with anti-crushing zone, compliant with standard NF EN ISO 13854 relating to the risks of crushing the human body.

  • Capacity 5000 kg (up to 6000 kg optional)
  • Sliding dock bumpers ref. BUMO115
    These bumpers move up and down to match the travel of the vehicles suspension.
  • Aluminium profile strong ramp on a monobloc steel frame
  • Positiv and negativ service range
  • Side railings
  • Standard dockside cap (with countersunk dowels) It is strongly recommended for 800/820 mm deep frames and whenever there is any doubt about the strength of the dock nose.
  • Automatic locking in vertical position
  • Automatic unlocking: the ramp can be unlocked by simply applying a little pressure with the hand
  • Compensated model with compensating spring for easy, effortless handling.
  • Non-compensated model equipped with an automatic locking mechanism in the vertical position, foot-operated release.
  • Lifting chain or drawbar (depending on model)
    • Options:
  • 8860 electrified loading drawbridge leveler: with on-board hydraulic power unit (0.5 kW motor, flow rate 3.7 I/mn, 400 or 230 V TRI 50 Hz+Earth supply, 24 V solenoid valve), single-acting platform lift cylinder with Ø30 mm rod and parachute valve
  • Metal pre-frame for setting a dock shelter
  • Checker plate or serrated grating floor
  • Dock cap with countersunk heads dowels

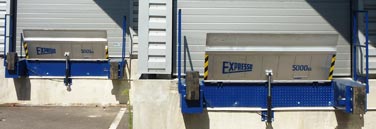

    • 8860 electrified loading drawbridge leveler
    8860 electrified loading drawbridge leveler
    8860 electrified loading drawbridge leveler
    8860 electrified loading drawbridge leveler
    8860 electrified loading drawbridge leveler
    Dock cap

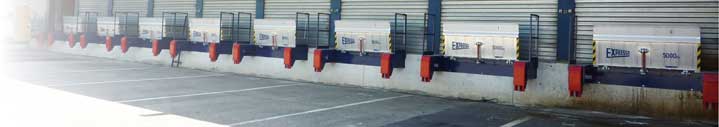

    8860 loading drawbridge leveler Expresso

    Drawbridge leveler reference
    8860/6517
    8860/6522
    8860/7520
    8860/9517
    8860/9522

    Ramp length
    650 mm
    650 mm
    650 mm
    750 mm
    750 mm
    750 mm
    950 mm
    950 mm
    950 mm

    Ramp width
    1750 mm
    2000 mm
    2250 mm
    1750 mm
    2000 mm
    2250 mm
    1750 mm
    2000 mm
    2250 mm

    Monobloc frame depth
    500 mm
    500 mm
    500 mm
    600 mm
    600 mm
    600 mm
    800 mm
    800 mm
    800 mm

    Monobloc frame width
    (with bumpers BUMO115)
    2500 mm
    2750 mm
    3000 mm
    2500 mm
    2750 mm
    3000 mm
    2500 mm
    2750 mm
    3000 mm

    Service range
    +/- 120 mm
    +/- 120 mm
    +/- 85 mm
    +/- 120 mm
    +/- 135 mm
    +/- 135 mm
    +/- 150 mm
    +/- 150 mm
    +/- 150 mm

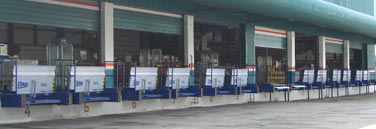

    Stationary 8860 drawbridge leveler on monobloc frame avec BULA3 rubber bumpers

    Anti-crushing refuge area - Capacity 5000 kg

    Pont de chargement 8860 Expresso en aluminium sur châssis monobloc
    Pont de chargement 8860 électrifié sur châssis monobloc
    Request a quote

    Aluminium loading bridge with anti-crushing refuge area, compliant with standard
    NF EN ISO 13854 relating to the risks of crushing the human body.

  • Capacity 5000 kg (up to 6000 kg optional)
  • Laminated rubber dock bumpers ref. BULA3
  • Aluminium profile strong ramp on a monobloc steel frame
  • Positiv and negativ service range
  • Side railings
  • Standard dockside cap (with countersunk dowels) It is strongly recommended for 800/820 mm deep frames and whenever there is any doubt about the strength of the dock nose.
  • Automatic locking in vertical position
  • Automatic unlocking: the ramp can be unlocked by simply applying a little pressure with the hand
  • Compensated model with compensating spring for easy, effortless handling.
  • Non-compensated model fitted with an automatic lock in the vertical position, foot-operated release
  • Lifting chain or drawbar (depending on model)
    • Options:
  • 8860 electrified loading drawbridge leveler: with on-board hydraulic power unit (0.5 kW motor, flow rate 3.7 I/mn, 400 or 230 V TRI 50 Hz+Earth supply, 24 V solenoid valve), single-acting platform lift cylinder with Ø30 mm rod and parachute valve
  • Metal pre-frame for mounting a dock shelter
  • Armoured sheet metal floor or notched grating.
  • Dockside cap: The platform cap is strongly recommended for 800/820 mm deep chassis and whenever there is any doubt about the strength of the dock nose.
    • Ponts de chargement 8860 électrifiés sur châssis monobloc
    8860 electrified loading drawbridge leveler
    Ponts de chargement 8860 électrifiés sur châssis monobloc
    8860 electrified loading drawbridge leveler
    8860 electrified loading drawbridge leveler on monobloc frame

    Drawbridge leveler reference
    8860/6517
    8860/6522
    8860/7520
    8860/9517
    8860/9522

    Ramp length
    650 mm
    650 mm
    650 mm
    750 mm
    750 mm
    750 mm
    950 mm
    950 mm
    950 mm

    Ramp width
    1750 mm
    2000 mm
    2250 mm
    1750 mm
    2000 mm
    2250 mm
    1750 mm
    2000 mm
    2250 mm

    Monobloc frame depth
    500 mm
    500 mm
    500 mm
    600 mm
    600 mm
    600 mm
    800 mm
    800 mm
    800 mm

    Monobloc frame width
    (with bumpers BULA3)
    2300 mm
    2500 mm
    2800 mm
    2300 mm
    2500 mm
    2800 mm
    2300 mm
    2500 mm
    2800 mm

    Service range
    +/- 85 mm
    +/- 85 mm
    +/- 85 mm
    +/- 100 mm
    +/- 100 mm
    +/- 100 mm
    +/- 120 mm
    +/- 120 mm
    +/- 120 mm

    Modular loading drawbridge leveler with bumpers BULA31

    Anti-crushing refuge area - Capacity 5000 kg

    Modular loading drawbridge leveler with bumpers BULA31 - Anti-crushing refuge area
    Rotary locking bolts for Expresso modular drawbridge leveler
    Request a quote

    Loading drawbridge leveler with anti-crushing refuge zone, compliant with standard NF EN ISO 13854 relating to the risks of crushing the human body.

  • Capacity 5000 kg (up to 6000 kg optional)
  • Bumper with metal cover Ref. BULA31
  • Aluminium profile strong ramp on a monobloc steel frame
  • Kit for locking the drawbridge leveler in the horizontal position to supply pallets from the yard to the dock
  • Positiv and negativ service range
  • Side railings
  • Standard dockside cap (with countersunk dowels) It is strongly recommended for 800/820 mm deep frames and whenever there is any doubt about the strength of the dock nose.
  • Automatic locking in vertical position
  • Automatic unlocking: the ramp can be unlocked by simply applying a little pressure with the hand
  • Compensated model with compensating spring for easy, effortless handling.
  • Non-compensated model equipped with an automatic locking mechanism in the vertical position, foot-operated release.
  • Lifting chain or drawbar (depending on model)
    • Options:
  • Hot-dip galvanising of the rail, bumpers bases and railings
  • Metal pre-frame for mounting a dock shelter
  • Dockside cap: The platform cap is strongly recommended for 800/820 mm deep chassis and whenever there is any doubt about the strength of the dock nose.
    • Modular drawbridge leveler with hot-dip galvanising of the rail, bumper plinths and guardrails
    Modular drawbridge leveler with hot-dip galvanising of the rail, bumper plinths and guardrails
    Modular drawbridge leveler with hot-dip galvanising of the rail, bumper plinths and guardrails
    Modular drawbridge leveler with hot-dip galvanising of the rail, bumper plinths and guardrails
    odular loading drawbridge leveler with bumpers BULA31 - Anti-crushing refuge area
    See also:
    Loading ramps - Sliding drawbridge leveler on rail - Ref. 8860 - 8861/62 - PAR
