Ensure sealing despite a dock extension between the warehouse and the transhipment area

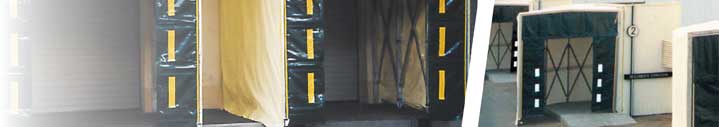

Telescopic dock shelter
Straight model TYPE KDTR-P

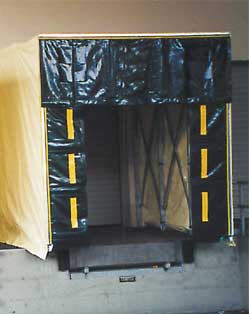

The telescopic dock shelter ensure sealing despite a dock extension between the warehouse and the transhipment area. It also allows, in the folded position to release the area for circulation of handling equipments.The length of the extension is not limited. Galvanized steel tube frame of 100 x 40 x 2 with pantographs and nylon wheels.

• Width : 3400 mm
• Height : 3500 mm
• Opening width : 2000 mm
• Depth : >=1500 mm
• Side panels width : 700 mm
• Upper panel height : 1000 mm

The curve telescopic rotative dock shelter KDK ensures sealing during transhipment of the longitudinally docked vehicles.
There are three standard models corresponding to
angles of 45, 60 and 90 °

• Width : 3400 mm
• Height : 4500 mm
• Opening width : 2000 mm
• Depth : 700 mm
• Side panels width : 700 mm
• Upper panel height : 1000 mm
