- Width : 3400 mm
- Height : 4500 mm
- Opening width : 2000 mm
- Depth : 700 mm
- Side panels width : 700 mm
- Upper panel height : 1000 mm
NB: The facade that receives the dock shelter must be perfectly flat and in alignment. In addition, the cladding must stop at 30 mm around the airlock. Installation of a pre-frame is recommended.
|

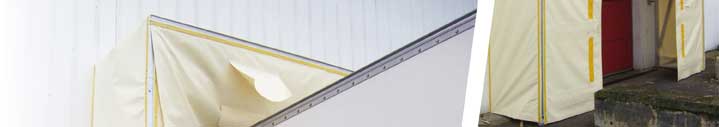

Designed to seal the ground loading bays featuring reduced maneuvering spaces

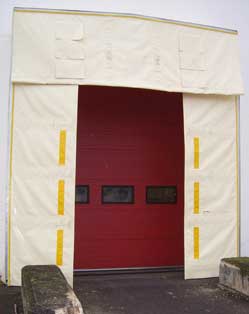

The dock shelter ensures tight connection between the trailer of the truck and the warehouse wall. It allows to minimize heat loss and protects personnel and goods from the weather.
- Galvanized metallic frame in steel tube 100 x 40 x 2 mm with pantograph
- Front frame equipped with nylon casters
- Tear resistant PVC tarpaulins - Finish by smooth abrasion-resistant fiberglass
- Yellow guide strips on side canvass for drivers
- Monobloc upper panel with some reinforcements
- Side panels with harmonic steel springs
The dock front for receiving dock shelters must be perfectly flat and aligned. In addition, the weatherboarding must stop at 30 mm around the dock shelter. The installation of a frame is advised.

|
