- Width : 2900 mm
- Height : 3000 mm
- Panels width : 300 mm
- Panels depth : 250 mm
- Installation height : 4200 mm
- Canvas thickness : 1600 g/m²
- Thickness of the canvas with scales :
670
g/m²
- Scales thickness : 1600 g/m²
|

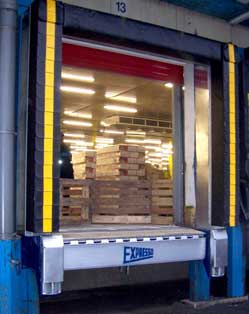

The foam dock seal is usually installed on doors of cold storage with controlled temperature
- Wooden support 40 mm thick composed of several layers of wood (to avoid any deformation), treated against rotting and mold.
- Quality robust elastic polyurethane foam cushions, surrounded by their polyester fiber cover Trévira® with PVC cover on both sides
- Yellow guide strips on side canvass for drivers
- OPTION :
The vertical side panels may be covered with scales following the upward and downward movements of trucks during loading and unloading, that allows to make the cushions more resistant to tearing.
Canvass features :
- Tear resistance K/1 (DIN53363/ISO505)
Canvas without scales : about 500 N
Canvas with scales : about 300 N for the canvas and about 500 N for the scales
- Resistant to traction
N/5cm (DIN 53354/ISO283)
Canvas without scales : about 4600/4000
Canvas with scales : about 3000/2800 for the canvas
and about 4600/4000 for the scales
- Temperature resistance (DIN 53361)
Canvas without scales : -25°C to 80°C
Canvas with scales : -25°C to 80°C for canvas and scales
|
