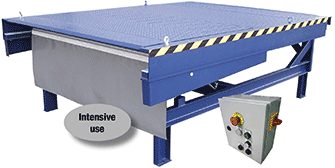

Dock leveler STVP in rest position
(with options feet for pit and front covering skirt)
|
Patented dock leveler model designed for intensive use
- Improved working comfort for the operator : health preserved, reduction of spinal problems
- Proctection of goods : No more repetitive shocks, reducing the risk of falling loads. Possibility to make slide the large volumes on the platform (surface without breaking)
- Structural load capacity and work intensity much higher : The telescopic comb lip dock leveler STVP has almost double IPE reinforcements that on a standard telescopic leveler at both to the platform and to the lip.
- Fast and very accurate adjustment of the lip on the floor of the trailer
- Its extension (500, 800 or 1000 mm) allows to reach the floor very far
|
| |
| Dock leveler Ref. |
STVP 20/20 |
STVP 20/22 |
STVP 25/20 |
STVP 25/22 |
STVP 30/20 |
STVP 30/22 |
STVP 35/20 |
STVP 35/22 |
STVP 40/20 |
STVP 40/22 |
| Rest position length (mm) |
2 000 |
2 000 |
2 500 |
2 500 |
3 000 |
3 000 |
3 500 |
3 500 |
4 000 |
4 000 |
| Length (mm) |
2 500 |
2 500 |
3 000 |
3 000 |
3 500 |
3 500 |
4 000 |
4 000 |
4 500 |
4 500 |
| Platform width (mm) |
2 000 |
2 200 |
2 000 |
2 200 |
2 000 |
2 200 |
2 000 |
2 200 |
2 000 |
2 200 |
| Lip width (mm) |
1 840 |
2 040 / 2 000 |
1 840 |
2 040 / 2 000 |
1 840 |
2 040 / 2 000 |
1 840 |
2 040 / 2 000 |
1 840 |
2 040 / 2 000 |
| Capacity (tons) |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
6 / 9 / 12 |
| Service range (mm) |
+300 / -300 |
+300 / -300 |
+350 / -300 |
+350 / -300 |
+400 / -300 |
+400 / -300 |
+450 / -300 |
+450 / -300 |
+500 / -300 |
+500 / -300 |
|
Our research department offers solutions for all possible configurations: Existing pits for levelers / Internal frame,
Very intensive use / Heavy loads, ... |
|
Construction :
- Dynamic capacity : 6 / 9 / 12 tons
- Lip length 500, 800 or 1000 mm
- Extremely robust construction giving exceptional resistance capacity
- IPE platform reinforcements, flame cut hinges of lip , UPN frame
- Side lip guidance and polyethylene coating for the slip
Hydraulic :
- Hydraulic and electrical components used chosen for their reliability and longevity
- Onboard hydraulic unit
- 1.1 KW motor power flow 5 l / min
- Supply 400 or 230 V TRI, 50 Hz + earth
- Control voltage 24 volt, Sequence valve
- 2 hydraulic cylinders for the platform and one for the lip
Safety :
- Safety skirts on both sides
- Security strut for maintenance
- Emergency stop with reset button
|
